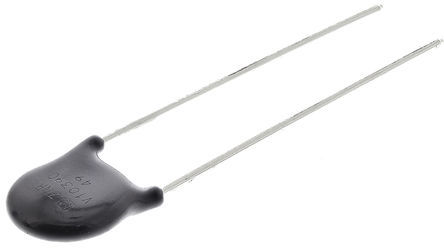

ERZV10D390

PANASONIC ELECTRONIC COMPONENTS  ERZV10D390  TVS压敏电阻, V系列, 25 V, 31 V, 77 V, 片状10mm, 高涌流抑制

Var 25VAC/31VDC 1000A 39V Radial Bulk

欧时:
### 金属氧化物变阻器 ZNR 系列，10mm 直径，Panasonic相对于紧凑尺寸，浪涌电流处理能力大 相对于标准变阻器，增加了两倍浪涌电流处理能力 类型 | 直径 （标称 /最大）mm | 节距 mm | 高度（印刷电路板上） mm ---|---|---|--- ERZV05 | 5 / 7 | 5 ±1 | 10 ERZV07 | 7 / 8.5 | 5 ±1 | 11.5 ERZV10 | 10 / 12.5 | 7.5 ±1 | 15.5 ERZV14 | 14 / 16 | 7.5 ±1 | 19 ERZV20 | 20 / 21.5 | 10 ±1 | 24.5 ### 瞬态电压抑制器 径向金属氧化物变阻器

e络盟:
TVS压敏电阻, 25 V, 31 V, ZNR V系列, 77 V, 片状10mm, 氧化锌非线性电阻 ZNR

艾睿:
Apply different voltages to this ERZ-V10D390 MOV from Panasonic in order to change resistance of it. This device&s;s clamping current is 5 A and clamping voltage is 77 V. This part has a pitch of 7.5 mm. Its maximum surge current is 1000 A. This voltage dependent resistor has an operating temperature of -40 to 85 °C. This product comes packaged in bulk, so the parts will be stored loosely. Its capacitance value is 0.0052uF. This product is 14.5 mm tall and 4.9 mm deep with a diameter of 11.5 mm. This varistor has a voltage of 39 V. The maximum AC voltage rating is 25 VAC and the maximum DC voltage rating is 31 VDC.

安富利:
Var 25VAC/31VDC 1000A 39V Radial Bulk

Chip1Stop:
Var 25VAC/31VDC 1000A 39V Radial Bulk

Newark:
# PANASONIC ELECTRONIC COMPONENTS  ERZV10D390  VARISTOR, 10MM DISC, 39V
