OSCAR20/5M/SMAM/S/S/15

OSCAR 20 4G/3G/GSM/GPRS Wall Mounted Yagi Antenna, SirettaThe Oscar 20 is a Yagi directional wall / bracket mount antenna tuned to 4G, 3G and quad band GSM/GPRS frequencies. This antenna is made from durable ABS plastic and mounted on a hinged bracket. The OSCAR 20 has a high peak gain which is ideal for long-distance communication and for areas with poor signal strength. This Yagi antenna is supplied with 5 m of RG58 cable with an SMA male connector.**Operating Frequencies ** 4G / LTE: 2600 MHz Quad Band GSM/GPRS: 850, 900, 1800, 1900 MHz 3G / UMTS: 2100 MHz Operating Temperature: -30 to +70°C Impedance: 50 Ω Gain: 7 to 8 dBi VSWR: Polarisation: Vertical / Horizontal Radiating Element: Yagi **Dimensions** Length: 170 mm Width: 147 mm Height: 35 mm ### 多频段天线

The Oscar 20 is tuned to 4G, 3G, GSM/GPRS making this antenna a very mainstream performer. Its wide operating frequency band allows for worldwide cellular applications over the 4G and 3G networks and also the quad band GSM networks, aided by an impressive peak gain of 12dBi.

.: Common applications include - base station installations, remote monitoring, and alarm & security systems

.: Radiating Element: Yagi

.: Operating Frequencies: 2600MHz 4G / LTE, 850, 900, 1800, 1900MHz Quad Band GSM/GPRS, 2100MHz 3G / UMTS

.: Durable ABS plastic with hinged bracket

.: 5m RG58 Cable fitted with SMA plug connector

.: Antenna Dimensions LxWxH: 170x147x35mm

OSCAR20/5M/SMAM/S/S/15详细参数

OSCAR20/5M/SMAM/S/S/15 PDF数据文档

图片	型号	厂商	下载
	OSCAR20/5M/SMAM/S/S/15	Siretta

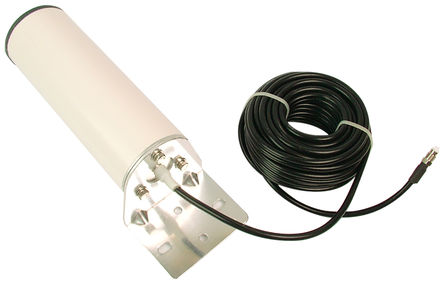

	OSCAR40/5M/LL/FMEF/S/S/33	Siretta
