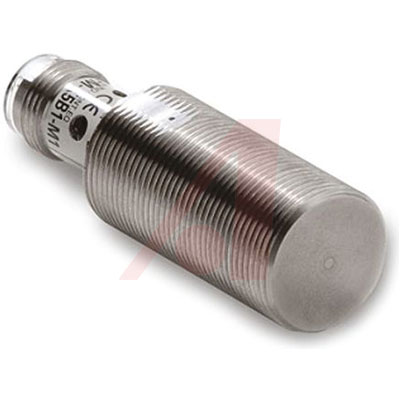

E2FM-X2B2 2M

2 mm PNP-NO 柱体 电感接近传感器, M12, 200 mA, 12 → 24 V 直流, IP67

**Inductive Sensing:** A Sensing technology that identifies the presence of metallic objects by detecting eddy current losses in a magnetic field produced at a sensing face.

**Features:**

* All-Stainless SUS303 Construction Provides Superior Durability

* Impact and Weld Spatter Resistant, Ideal for the Harsh Weld and Stamping Environment

* Easy-to-See LED Operation Indicator Allows Quick Confirmation of Output Status

* DC 2- and 3-Wire Quick Connect Types for Fast Change-Out, Connector Cordsets Sold Separately

* Metal Chip Immune Function, Prevents Flash Triggers in Machining Operations

* Enclosure Withstands Washdown, Cutting Coolants and Lubricants for Extended Sensor Life

* Built-In Wrench Flats Ease Installation, Nuts and Lockwasher Are Provided

* Other Sizes, Pre-Wired Versions and Flouropolymer Coated Types Available

**Specifications:

**

* Supply Voltage Range: 10-30 VDC

* Load Rating: 3-100 mA DC for 2-Wire or 0-200 mA DC for 3-Wire Types

* Enclosure Ratings Include IEC IP67

* Approvals: CE, cULus
