TDA8510J

26W BTL and 2 x 13W SE power amplifiers

GENERAL DESCRIPTION

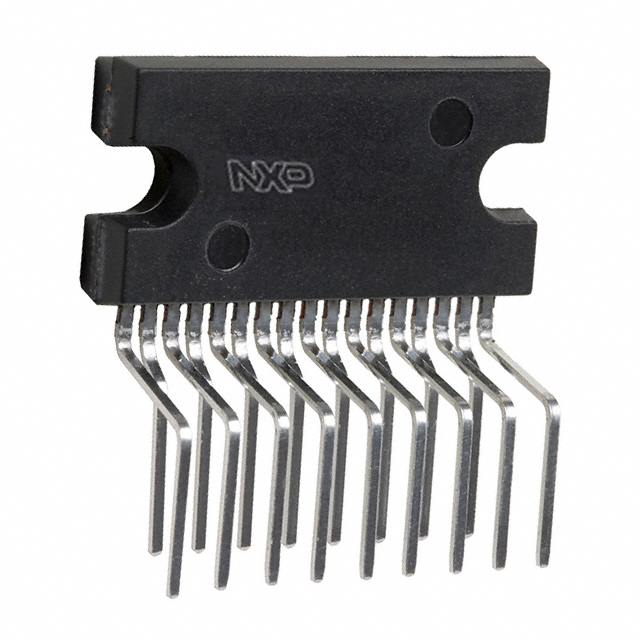

The is an integrated class-B output amplifier in a 17-lead single-in-line SIL power package. It contains a 26 W Bridge-Tied Load BTL amplifier and 2×13 W Single-Ended SE amplifiers. The device is primarily developed for multi-media applications and active speaker systems stereo with subwoofer.

FEATURES

• Requires very few external components

• High output power

• Low output offset voltage BTL channel

• Fixed gain

• Diagnostic facility distortion, short-circuit and temperature detection

• Good ripple rejection

• Mode select switch operating, mute and standby

• AC and DC short-circuit safe to ground and to VP

• Low power dissipation in any short-circuit condition

• Thermally protected

• Reverse polarity safe

• Electrostatic discharge protection

• No switch-on/switch-off plop

• Flexible leads

• Low thermal resistance

• Identical inputs inverting and non-inverting.
