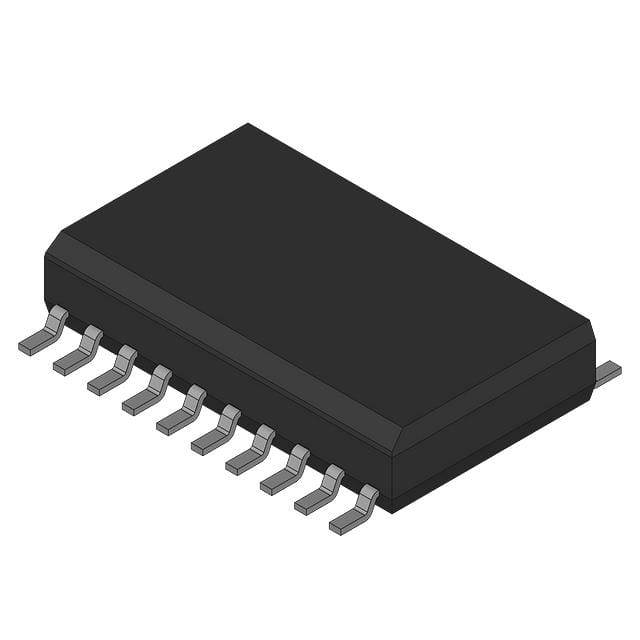

SN74LS374DWR2

八路透明锁存器具有三态输出的八路D型触发器具有三态输出 Octal Transparent Latch with 3-State Outputs Octal D-Type Flip-Flop with 3-State Output

Octal Transparent Latch with 3-State Outputs; Octal D-Type Flip-Flop with 3-State Output

The SN74LS373 consists of eight latches with 3-state outputs for bus organized system applications. The flip-flops appear transparent to the data data changes asynchronously when Latch Enable LE is HIGH. When LE is LOW, the data that meets the setup times is latched. Data appears on the bus when the Output Enable OE is LOW. When OEis HIGH the bus output is in the high impedance state.

The SN74LS374 is a high-speed, low-power Octal D-type Flip-Flop featuring separate D-type inputs for each flip-flop and 3-state outputs for bus oriented applications. A buffered Clock CP and Output Enable OE is common to all flip-flops. The SN74LS374 is manufactured using advanced Low Power Schottky technology and is compatible with all TTL families.

•Eight Latches in a Single Package

•3-State Outputs for Bus Interfacing

•Hysteresis on Latch Enable

•Edge-Triggered D-Type Inputs

•Buffered Positive Edge-Triggered Clock

•Hysteresis on Clock Input to Improve Noise Margin

•Input Clamp Diodes Limit High Speed Termination Effects
