01115.0-00

Stego 紧凑型防倒转刻度盘恒温器Stego STO 011/STS 011 系列小型恒温器含有两个状态调节器，具有短滞后和高切换容量。 设置指轮可以抗霜冻，而外壳则能保证双金属周围的空气循环得到优化。 STO 011（库存号 743-1296）恒温器（常闭）是一个触点断路器，用于调节加热器。 STS 011（库存号 743-1290）恒温器（常开）是一个触点制作器，用于调节过滤器风扇和换热器或在超过温度限制时切换信号设备。开关温度差异：4K（±3K 容差） 传感器元件:恒温双金属 触点类型：咬接式触点 工作寿命：最大切换容量：250 V 交流，10 2 A；120 V 交流，15 2 A；24V 直流至 72V 直流时 30 W 最大起动电流：16 A 交流，10 秒 连接：2 极接线端子，用于 2.5mm² AWG 13，最大扭矩 1Nm 安装：夹用于 35mm DIN 导轨，EN 60715 外壳：塑料，符合 UL94 V-0 等级，浅灰色 尺寸：70 x 33 x 42mm 重量：约 50g 安装位置：可变 工作/储存温度：-45 °C 至 +80 °C（-49 至 +176°F） 工作/储存湿度：最大 90% RH（非冷凝） 保护类型：IP20 ### 温度调节器和湿度调节器

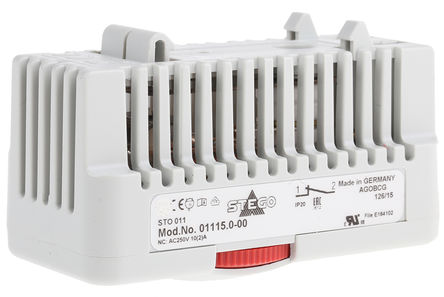

The from is a compact thumbwheel thermostat. It is a normally closed SPST regulator with small hysteresis. The housing design ensures optimized air circulation around sensor element. The device dimension is 2.76inch x 1.3inch x 1.65inch 70mm x 33mm x 42mm. This thermostat NC normally closed opens on temperature rise red thumbwheel for regulating heaters or for switching signal devices when temperature has fallen below the minimum value. The 01115.0-00 has service life of more than 100,000 cycles and also has IP20 degree of protection.

.

Approved by UL file number E164102, VDE and GOST-R

.

Setting range from 0°C to 60°C

.

Switching difference of 7°F 4K ± 5.4°F 3K tolerance

.

Thermostatic bimetal sensor element

.

Adjustable thumbwheel settings, high switching capacity and snap action contact

.

Maximum inrush current of 16A AC for 10sec

.

Maximum switching capacity of 15A resistive/2A inductive 120V & 10A resistive/2A inductive 250V

.

DIN rail mountable and vertical mounting position

.

Flammability ratings meets UL 94V-0, light grey plastic housing

.

-45°C to 80°C operating/storage temperature and 95%RH operating/storage humidity

The contact system of regulator is subjected to environmental influences, thus contact resistance may change. This can lead to voltage drop and/or self heating of the contacts.
