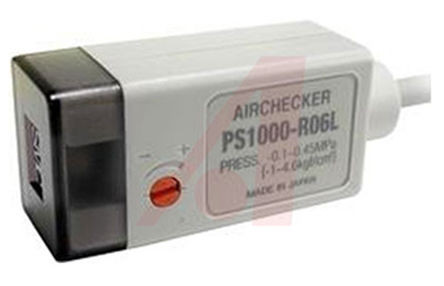

PS1000-R06L

PS1000 压力传感器（可调）SMC PS1 系列电子压力开关用于提供压力和真空。 PS1 系列是超紧凑和轻型。 2 线开关适用于 NPN 或 PNP 输出。 插入式渐缩管端口用于单触式配件，这使 PS1 系列易于安装，且大型 LED 显示屏提供高度可见的开关。与 SMC“单触式”管件一起使用 ≤ +/- 1% FS 重复精度 通过设定微调电容器，易于调整 双线连接 传感器上带有 LED 指示器 固态开关输出，40mA @ 12V 直流 **滞后** | ≤4% FS ---|--- **工作温度范围 °C** | 0 至 +60 **合适的介质** | 空气 **开关触点额定值** | 40 mA ### 压力开关警告 * 虽然人们通常将压缩空气视为安全能源，但却必须谨慎对待。无论什么情况下，都不能用于指定以外的任何其他用途。 * 虽然压缩空气通常被认为是安全能源，但必须始终谨慎对待。无论什么情况下，都不能用于指定以外的任何其他用途。

Pressure switches detect pressure of gases or liquids. Built-in circuitry allows for the adjustment of set points and outputs. Outputs are ON-OFF solid state or read switch type outputs. Some models feature analog outputs. The pressure is detected using solid state, metal diaphragm or piston type sensors. Applications for pressure switches include areas such as positioning, leakage testing, supply pressure verification, etc.

vacuum switches provide a completely integrated, digital solution designed to monitor vacuum status. Vacuum sensor and switch outputs are integrated into ultra-compact, lightweight units. Easy push button calibration eliminates the need for tools. Available in either easy-to-read LCD with backlight or LED readouts which display current measured value as well as set points and output mode information. Outputs are digital NPN or PNP and analog, with simple programming and multiple application features such as failure prediction and window comparator. Vacuum switches can be integrated directly onto many vacuum generators.

Popular ISE30 and ZSE30 series digital pressure/vacuum switches now come with one-touch push-to-connect tube fittings. Choose from straight or 90… angled fittings for 4 mm, 6 mm, or 1⁄4" tubing.
