RN4983

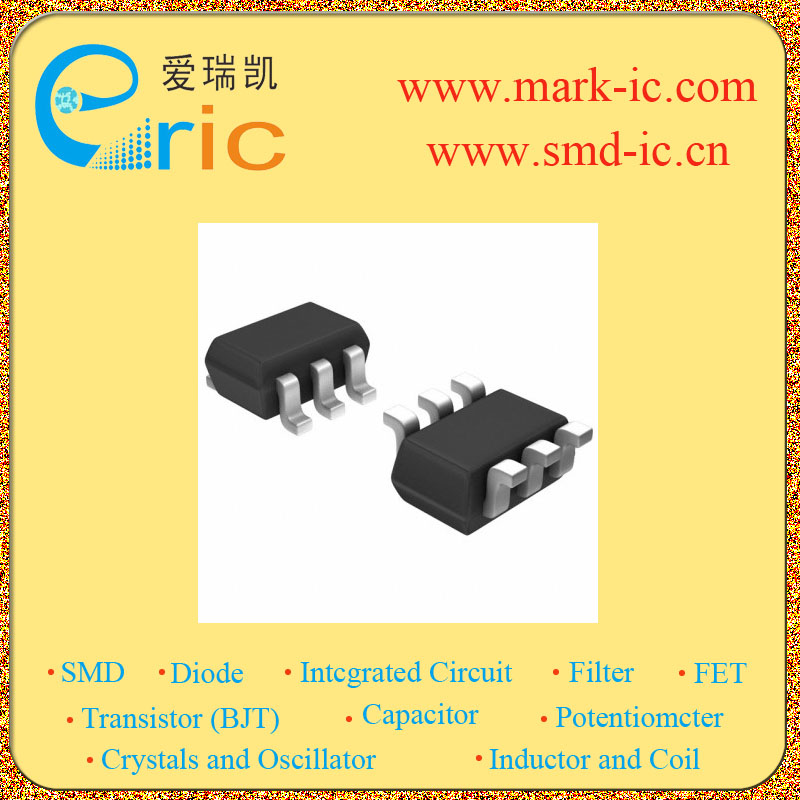

RN4983 NPN+PNP复合带阻尼三极管 50V/-50V 100mA/-100mA 70 200mW/0.2W SOT-363/US6/SC70-6 标记6C 开关电路 逆变器 接口电路 驱动电路

集电极-基极反向击穿电压VBRCBO Collector-Base VoltageVCBO| 50V/-50V

\---|---

集电极-发射极反向击穿电压VBRCEO Collector-Emitter VoltageVCEO| 50V/-50V

集电极连续输出电流IC Collector CurrentIC| 100mA/-100mA

Q1基极输入电阻R1 Input ResistanceR1| 22KΩ/Ohm

Q1基极-发射极输入电阻R2 Base-Emitter ResistanceR2| 22KΩ/Ohm

Q1电阻比R1/R2 Q1 Resistance Ratio| 1

Q2基极输入电阻R1 Input ResistanceR1| 22KΩ/Ohm

Q2基极-发射极输入电阻R2 Base-Emitter ResistanceR2| 22KΩ/Ohm

Q2电阻比R1/R2 Q2 Resistance Ratio| 1

直流电流增益hFE DC Current GainhFE| 70

截止频率fT Transtion FrequencyfT| 250MHz/200MHz

耗散功率Pc Power Dissipation| 200mW/0.2W

Description & Applications| Features • TOSHIBA Transistor Silicon PNP Epitaxial Type PCT Process Silicon NPN Epitaxial Type PCT Process • Includeing two devices in US6 ultra super mini type with 6 leads • With built-in bias resistors • Simplify circuit design • Reduce a quantity of parts and manufacturing process Applications • Switching, Inverter Circuit, Interface Circuit and Driver Circuit Applications.

描述与应用| 特点 •的硅PNP外延型硅NPN外延型（PCT工艺）（PCT工艺） •包括，两个设备US6（超超级迷你型6引线） •内置偏置电阻 •简化电路设计 •减少了部件数量和制造工艺 应用 •开关，逆变电路，接口电路和驱动器电路应用。
