BTT6100-2EKA

2xHSS 100mOhm 24V SO14-40EP

Description:

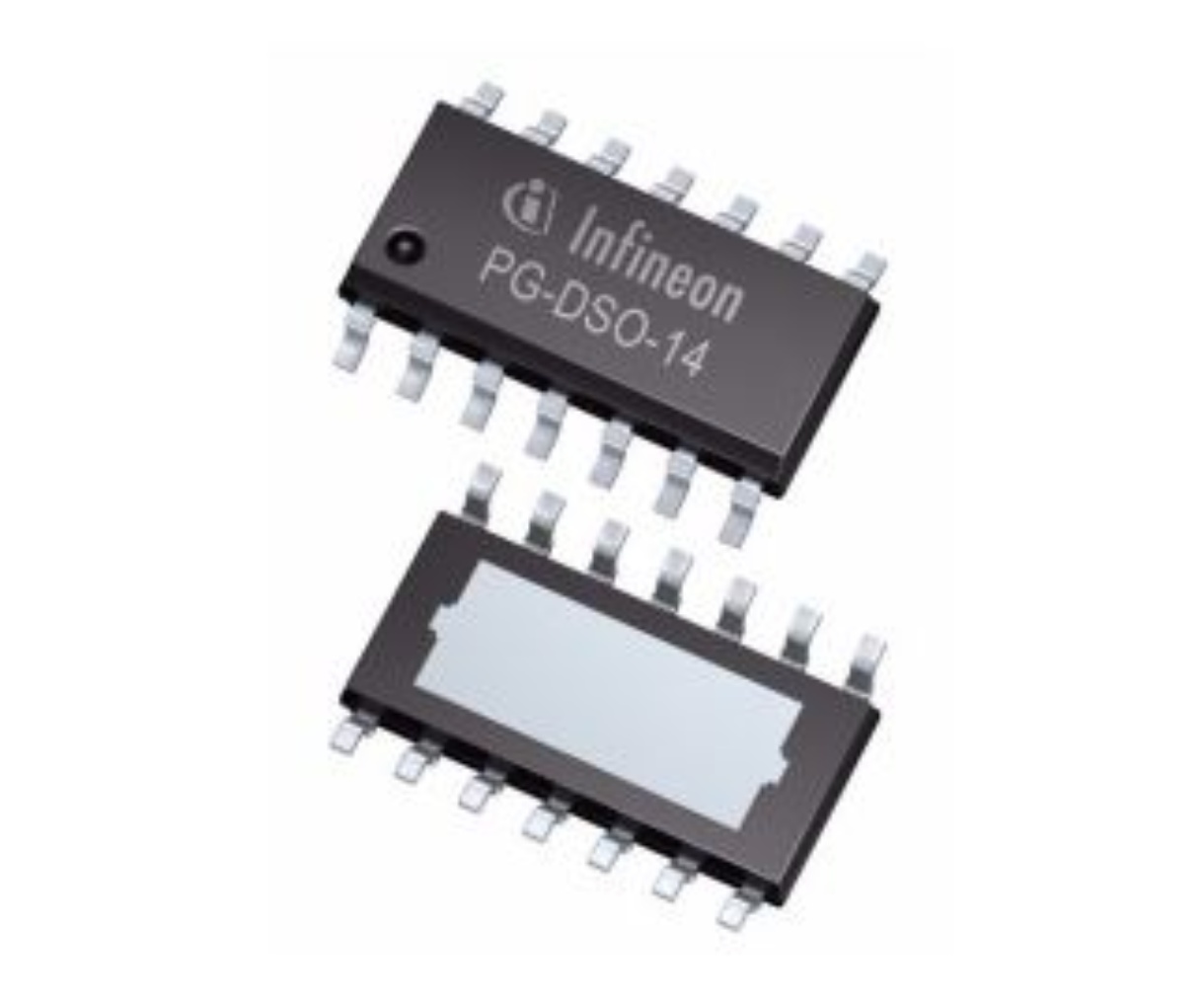

The is a 100 m Ω dual channel Smart High-Side Power Switch, embedded in a PG-DSO-14-40 EP, Exposed Pad package, providing protective function s and diagnosis. The power transistor is built by an N-channel vertical power MOSFET with charge pump. The device is integrated in Sm art6 HV technology. It is specially designed to drive lamps up to 1x P21W 24V or 1x R10W 12V, as well as LEDs in the harsh automotive environment.

Summary of Features:

.

Dual channel device

.

Very low stand-by current

.

3.3 V and 5 V compatible logic inputs

.

Electrostatic discharge protection ESD

.

Optimized electromagnetic compatibility

.

Logic ground independent from load ground

.

Very low power DMOS leakage current in OFF state

.

Green product RoHS compliant

.

AEC qualified
