TSW-132-14-T-D
SAMTEC TSW-132-14-T-D Board-To-Board Connector, 2.54mm, 64Contacts, Header, TSW Series, Through Hole, 2Rows
针座 通孔 64 位置 0.100"(2.54mm)
得捷:
CONN HEADER VERT 64POS 2.54MM
艾睿:

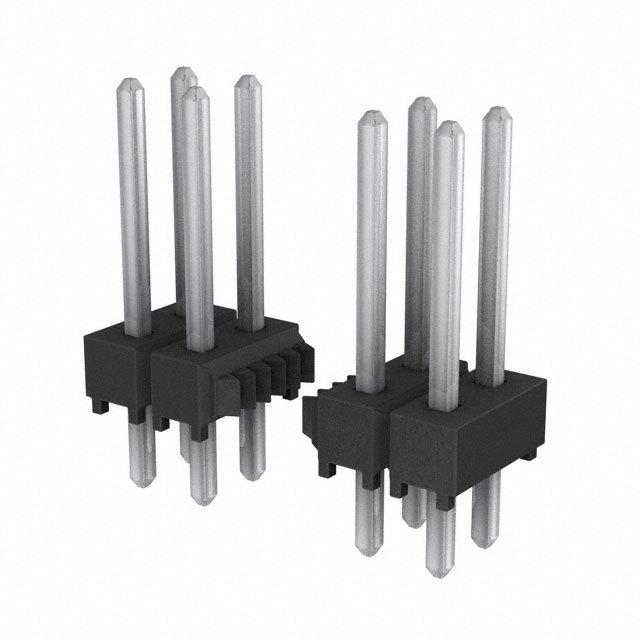

This unshrouded TSW-132-14-T-D header connector from Samtec reduces the possibility of accidentally shorting pins when a board is being used. This HDR connector&s;s 64 contacts that are made out of phosphor bronze and plated with tin over nickel. It has a straight body orientation. This is a 2-row connector. Its pitch is 2.54 mm. It has a maximum voltage rating of 550 VAC. It has a header type gender. This device has a maximum current rating of 6.3 A/contact. This product comes packaged in bulk, so the parts will be stored loosely. This product is 81.28 mm long, 10.67 mm tall and 5.08 mm deep. TSW-132-14-T-D is housed in black polyester. This connector has an operating temperature of -55 to 105 °C. It uses the solder termination method.
Newark:
# SAMTEC TSW-132-14-T-D Board-To-Board Connector, 2.54 mm, 64 Contacts, Header, TSW Series, Through Hole, 2 Rows
