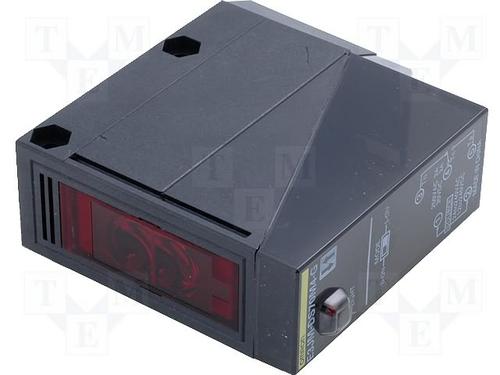

E3JM10M4US

Photoelectric Sensor, SEP, 10m, SD, SPDT, Infrared LED, Through-Beam

**E3JM Slim Style, with or without Delay Timer**

**Featured List:**

* Through Beam, Retroreflective and Diffuse versions available

* Food industry compatible

* ABS Case, acrylics lens, PC Cover. IP66. LED indication

* N/O and N/C selectable

* Response time 30ms Max version without delay timer

* Load switching relay SPCO type, rated to 3A resistive at 250 Vac

* Delay timer versions have selection of ON delay, OFF delay and ONE-SHOT except 256-427:256-433 & 256-449 outputs with delay times of 0.1 to 5 seconds variable

* Through beam version supplied as a transmitter and receiver pair

* Operating mode: Light ON/Dark ON selectable

* Supply Voltage 12 to 240 Vdc or 24 to 240 Vac

* Retroreflective version employs Polarized light to reduce false triggering. Reflector type E39-R1 included

* Operating temperature range -25° to +55° C

* Relay compatibility 5Vac 10A min.

* Teminal block, PG13.5 entry

* Power rating: Through beam 3W, remainder 2W

* Mounting bracket and Cable glands included
