1N6031D

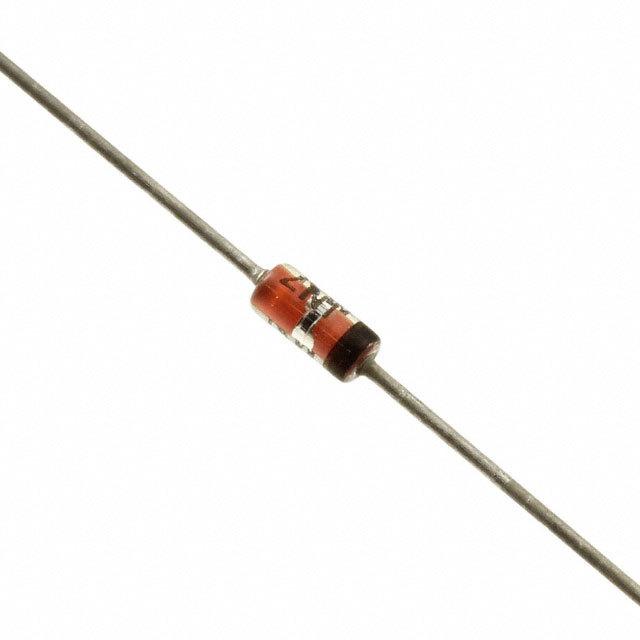

Diode Zener 200V 0.5W1/2W Do35

DESCRIPTION

The popular 1N5985 thru 1N6031 series of 0.5 watt Zener Voltage Regulators provides a selection from 2.4 to 200 volts in standard 5% or 10% tolerances as well as tighter tolerances identified by different suffix letters on the part number. These glass axial-leaded DO-35 Zeners are also available in various military screening levels by adding a prefix identifier as described in the Features section. also offers numerous other Zener products to meet higher and lower power applications.

FEATURES

• JEDEC registered 1N5985 to 1N6031

• Similar to operating current conditions of the BZX55 Pro Electron series of Zener products in Europe

• Internal bonds optionally available with “-1” suffix

• Options for screening in accordance with MIL-PRF-19500 for JAN, JANTX, JANTXV, and JANS are available by adding MQ, MX, MV, or MSP prefixes respectively to part numbers with “-1” suffix.

• Surface mount equivalents available as MLL5985 to MLL6031 in the DO-213AA MELF style package including “-1” suffix options consult factory for others

• DO-7 glass body axial-leaded Zener equivalents are also available

APPLICATIONS / BENEFITS

• Regulates voltage over a broad operating current and temperature range

• Extensive selection from 2.4 to 200 V

• Standard voltage tolerances are plus/minus 5% with B suffix, 10 % with A suffix identification

• Tight tolerances available in plus or minus 2% or 1% with C or D suffix respectively

• Flexible axial-lead mounting terminals

• Nonsensitive to ESD MIL-STD-750 Method 1020

• Minimal capacitance see Figure 2

• Inherently radiation hard as described in Microsemi MicroNote 050
