STM8TL53G4U6

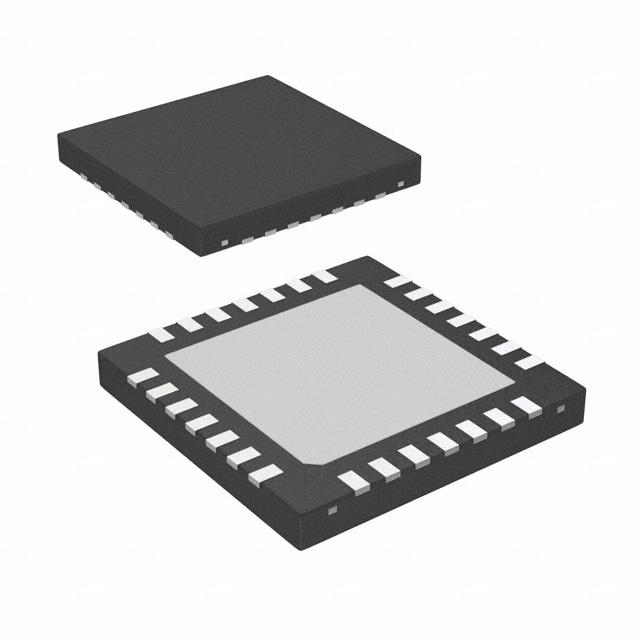

STM8 系列 8 位 16 kB 闪存 1 KB RAM 16 MHz 微控制器 - UFQFPN-28

The STM8TL52x4 and STM8TL53x4 devices feature the enhanced STM8 CPU core providing increased processing power up to 16 MIPS at 16 MHz while maintaining the advantages of a CISC architecture with improved code density, a 24-bit linear addressing space and an optimized architecture for low power operations. It uses a ProxSense charge transfer capacitive acquisition method that is capable of near range proximity detection.

The family includes an integrated debug module with a hardware interface SWIM which allows non-intrusive in-application debugging and ultrafast Flash programming. All STM8TL52x4 and STM8TL53x4 microcontrollers feature low-power low-voltage single-supply program Flash memory.

The STM8TL52x4 and STM8TL53x4 devices are based on a generic set of state-of-the-art peripherals. The modular design of the peripheral set allows the same peripherals to be found in different ST microcontroller families including 32-bit families. This makes any transition to a different family very easy, and simplified even more by the use of a common set of development tools.

**Key Features**

.

Operating conditions

.

Operating power supply: 1.65 V to 3.6 V

.

Temperature range: –40 °C to 85 °C

.

Low power features

.

4 low power modes: Wait, Active-halt with AWU 1 μA, Active-halt with ProxSense™ 10 μA with scan every 200 ms,Halt 0.4 μA

.

Dynamic power consumption: 150 μA/MHz

.

Fast wakeup from Halt mode: 4.7 μs

.

Ultra-low leakage per I/O: 50 nA

.

Advanced STM8 Core

.

Harvard architecture with 3-stage pipeline

.

Max freq.16 MHz,16 CISC MIPS peak

.

Memories

.

Up to 16 Kbyte of Flash program including up to 2 Kbyte of data EEPROM

.

Error correction code ECC

.

Flexible write and read protection modes

.

In-application and in-circuit programming

.

Data EEPROM capability

.

4 Kbyte of static RAM

.

Clock management

.

Internal 16 MHz factory-trimmed RC

.

Internal 38 kHz low consumption RC driving both the IWDG and the AWU

.

Reset and supply management

.

Ultra-low-power, ultra safe power-on reset/ power-down reset

.

Interrupt management

.

Nested interrupt controller with software priority control

.

Up to 22 external interrupt sources

.

I/Os

.

Up to 23 with 22 mappable on external interrupt vectors

.

I/Os with programmable input pull-ups, high sink/source capability

.

ProxSense™ patented acquisition technology with up to 300 touch sensing channels 20 receiver/transmitter channels and 15 transmitter channels supporting projected capacitive acquisition method suitable for proximity detection.

.

Timers

.

Two 16-bit general purpose timers TIM2 and TIM3 with up and down counter and two channels used as IC, OC, PWM

.

One 8-bit timer TIM4 with 7-bit prescaler

.

Independent watchdog

.

Window watchdog

.

Auto-wakeup unit

.

Beeper timer with 1, 2 or 4 kHz frequencies

.

Communication interfaces

.

SPI synchronous serial interface

.

Fast I2C Multimaster/slave 400 kHz

.

USART with fractional baud rate generator

.

Development support

.

Hardware single wire interface module SWIM

.

In-circuit emulation ICE
