TSW-107-05-G-D

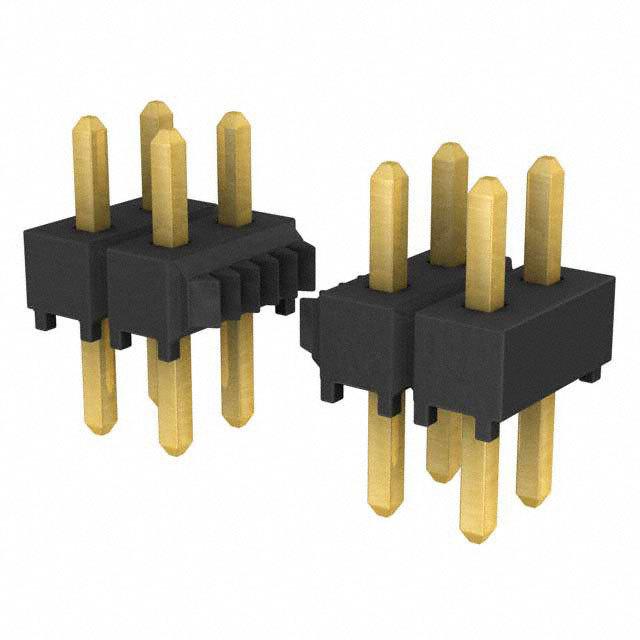

SAMTEC TSW-107-05-G-D Board-To-Board Connector, 2.54mm, 14Contacts, Header, TSW Series, Through Hole, 2Rows

针座 通孔 14 位置 0.100"（2.54mm）

欧时:
Classic PCB HDR Strips 0.100"

得捷:
CONN HEADER VERT 14POS 2.54MM

艾睿:
This unshrouded TSW-107-05-G-D header connector from Samtec is used for jumper posts to support physical configuration options on printed circuit boards. This HDR connector&s;s 14 contacts that are made out of phosphor bronze and plated with gold over nickel. Its pitch is 2.54 mm. It has a straight body orientation. It has a maximum voltage rating of 550 VAC. It has a header type gender. This is a 2-row connector. This device has a maximum current rating of 6.3 A/contact. This product comes packaged in bulk, so the parts will be stored loosely. This product is 17.78 mm long, 5.21 mm tall and 5.08 mm deep. This connector has an operating temperature of -55 to 125 °C. It uses the solder termination method. TSW-107-05-G-D is housed in black polyester.

Newark:
# SAMTEC  TSW-107-05-G-D  Board-To-Board Connector, 2.54 mm, 14 Contacts, Header, TSW Series, Through Hole, 2 Rows
