TLP3130

PHOTORELAY MOSFET 4-SOP

MEASUREMENT INSTRUMENTS

LOGIC IC TESTERS / MEMORY TESTERS

BOARD TESTERS / SCANNERS

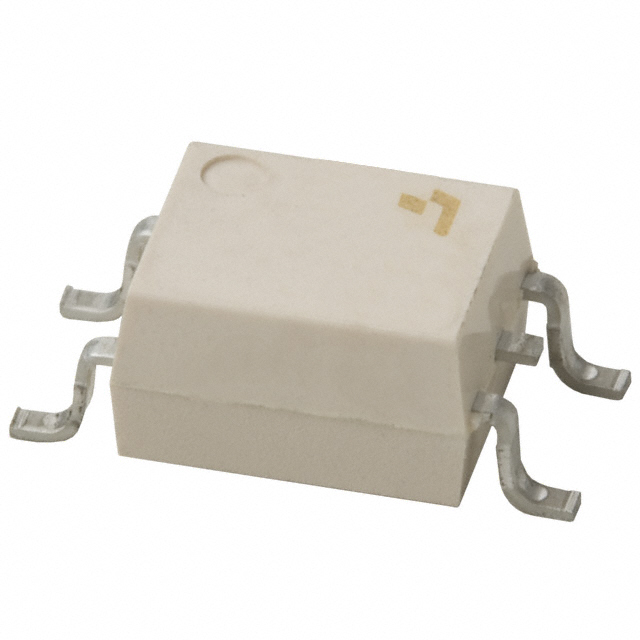

The TOSHIBA Mini-flat photorelay is a small-outline photorelay, suitable for surface-mountassembly. The TLP3130 consists of a GaAs infrared-emitting diode optically coupled to a photo-MOS FET and housed in a 4-pin package. Its characteristics also include low OFF-state current and low output pin capacitance, enabling it to be used in high-frequency measuring instruments.

Features

•  4 pin SOP 2.54SOP4  : 2.1 mm high, 2.54 mm pitch

•  1-Form-A

•  Peak Off-State Voltage  : 20 V MIN.

•  Trigger LED Current  : 4 mA MAX.

•  On-State Current  : 160 mA MAX.

•  On-State Resistance  : 8 ΩMAX., 5 ΩTYP.

•  Output Capacitance  : 2.5 pF MAX., 1.0 pF TYP.

•  Isolation Voltage  : 1500 Vrms MIN.
