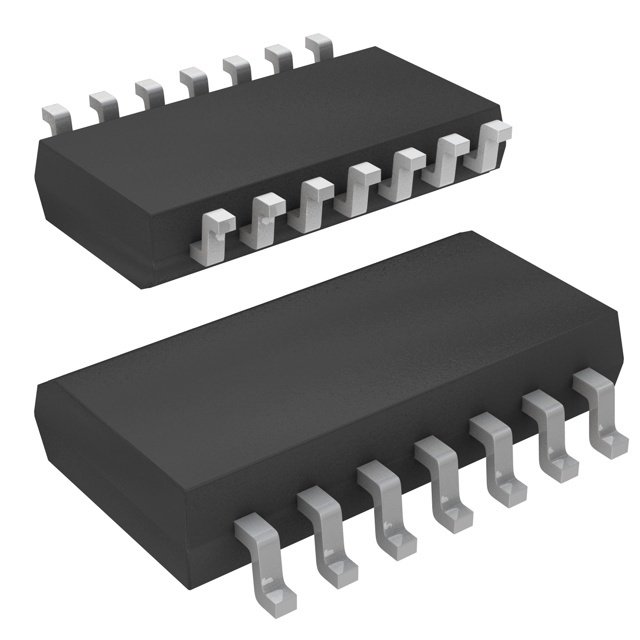

SN7400NSR

四路2输入正与非门 QUADRUPLE 2-INPUT POSITIVE-NAND GATES

description/ordering information

These devices contain four independent 2-input NAND gates. The devices perform the Boolean function

Y = A •Bor Y = A+ Bin positive logic.

Package Options Include Plastic Small-Outline D, NS, PS, Shrink Small-Outline DB, and Ceramic Flat W Packages, Ceramic Chip Carriers FK, and Standard Plastic N and Ceramic J DIPs

Also Available as Dual 2-Input Positive-NAND Gate in Small-Outline PS Package

得捷:
IC GATE NAND 4CH 2-INP 14SOP

Win Source:
NAND Gate IC 4 Channel 14-SO
