TC7SZ04AFE

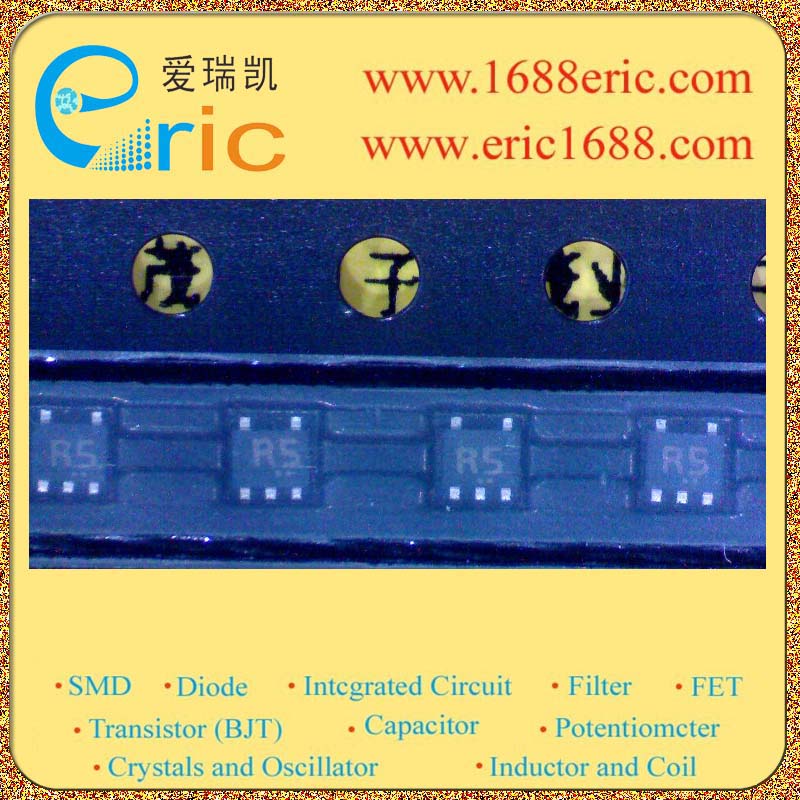

IC 反相器 TC7SZ04AFE SOT-553/ESV marking/标记 R5

逻辑类型Logic Type| 反相器 Inverter \---|--- 电路数Number of Circuits| 1 输入数Number of Inputs| 1 电源电压VccVoltage - Supply| 1.8v~5.5v 静态电流IqCurrent - Quiescent Max| 2µA 输出高，低电平电流Current - Output High, Low| -32mA,32mA 低逻辑电平Logic Level - Low| 0.25v~0.3v 高逻辑电平Logic Level - High| 0.7v~0.75v 传播延迟时间@Vcc，CLMax Propagation Delay @ V, Max CL| 4.3ns @ 4.5V~5.5V，15pF Description & Applications| Inverter ；High output drive: ±24 mA min. @VCC = 3 V • Super high speed operation: tPD 2.4 ns typ. @VCC = 5 V, 50 pF • Operation voltage range: VCC = 1.8~5.5 V • Supply voltage data retention: VCC = 1.5~5.5 V • Latch-up performance: ±500 mA or higher • ESD performance: Human body model > ±2000 V Machine model > ±200 V • Power down protection is provided on all inputs. • Matches the performance of TC74LCX series when operated at 3.3 V VCC 描述与应用| 逆变器;高输出驱动器：±24毫安（最小值）@ VCC=3 V •超高速运转：TPD2.4纳秒（典型值）    @ VCC = 5 V，50 pF的 •工作电压范围：VCC=1.8〜5.5 V •电源电压数据保存：VCC=1.5〜5.5 V •闭锁性能：±500 mA或更高 •ESD性能：人体模型>±2000 V    机模型>±200 V •掉电保护是对所有投入。 •匹配的性能时TC74LCX系列工作在3.3 V VCC
