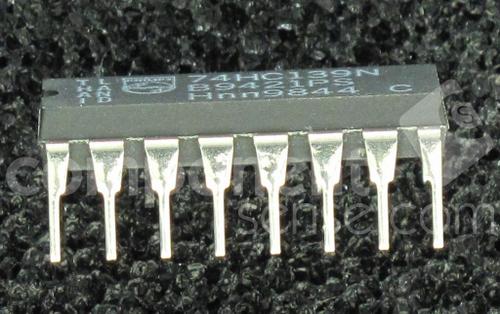

74HC139N

NXP  74HC139N  芯片, 74HC CMOS逻辑器件

The is a dual 2-to-4 line Decoder or Demultiplexer decodes two binary weighted address inputs nA0, nA1 to four mutually exclusive outputs nY0 to nY3. Each decoder features an enable input nE. When nE is high all outputs are forced high. The enable input can be used as the data input for a 1-to-4 demultiplexer application. Inputs include clamp diodes that enable the use of current limiting resistors to interface inputs to voltages in excess of VCC. Suitable for memory decoding, data routing or code conversion.

.

CMOS input level

.

Demultiplexing capability

.

Multi-function capability

.

Active low mutually exclusive outputs

.

ESD protection HBM JESD22-A114F exceeds 2000V

ESD sensitive device, take proper precaution while handling the device.
