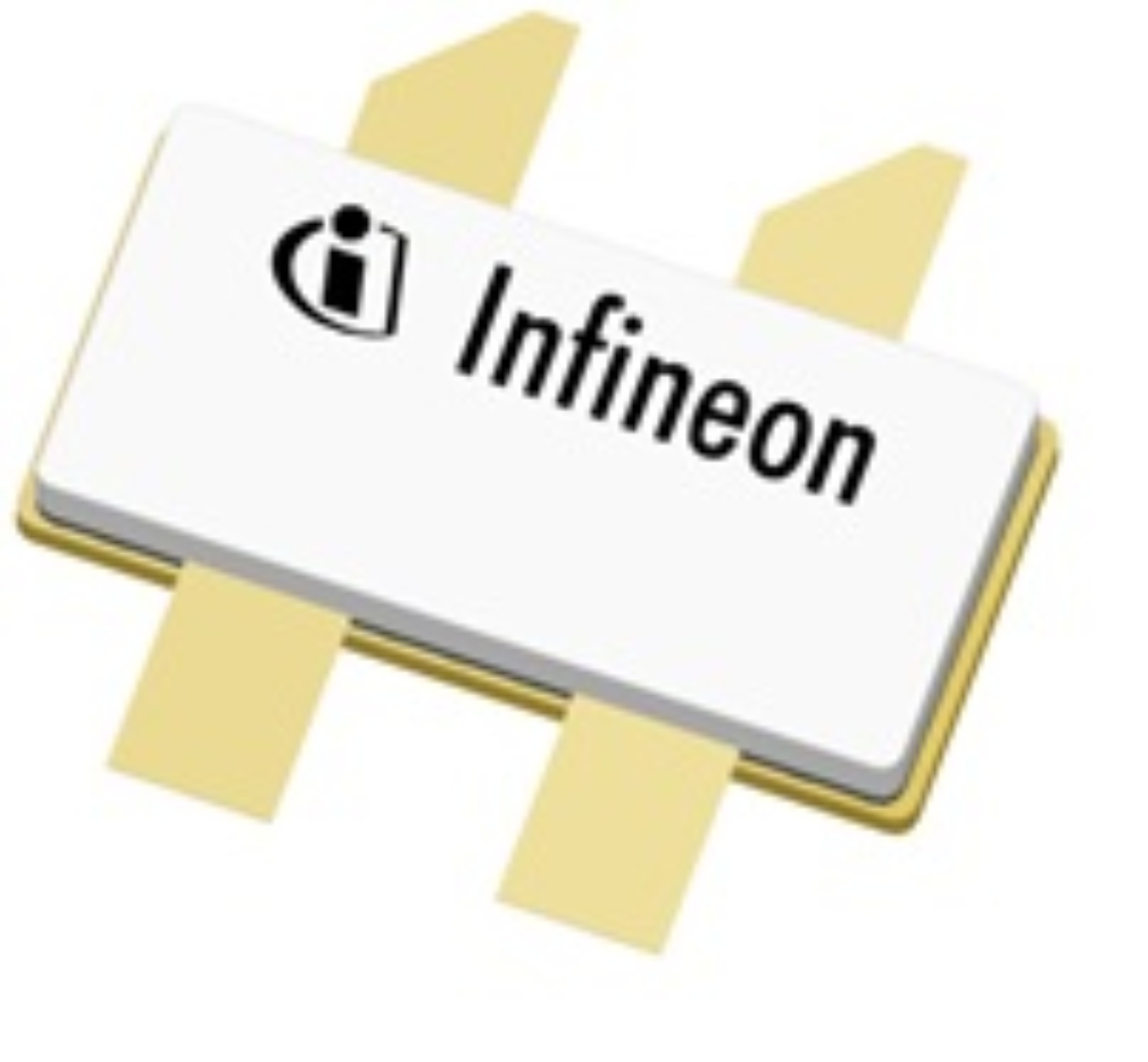

PTRA093302FCV1R2XTMA1

High Power RF LDMOS FET, 330W, 50V, 746 – 768MHz

Summary of Features:

.

Input matched

.

Asymmetric Doherty design

\- Main: P 1dB = 150 W Typ

\- Peak: P 1dB = 175 W Typ

.

Typical Pulsed CW performance, 746–768 MHz, 48 V, combined outputs

\- Output power at P 1dB = 200 W

\- Efficiency = 54%

\- Gain = 16.5 dB

.

Capable of handling 10:1 VSWR @ 48 V, 79 W CW output power

.

Integrated ESD protection

.

Human Body Model Class 1C per ANSI/ESDA/JEDEC JS-001

.

Low thermal resistance

.

Pb-free and RoHS-compliant
