MAX17690EVKITA#

MAXIM INTEGRATED PRODUCTS  MAX17690EVKITA#  EVAL BOARD, FLYBACK CTRL/SYNC RECTIFIER 新

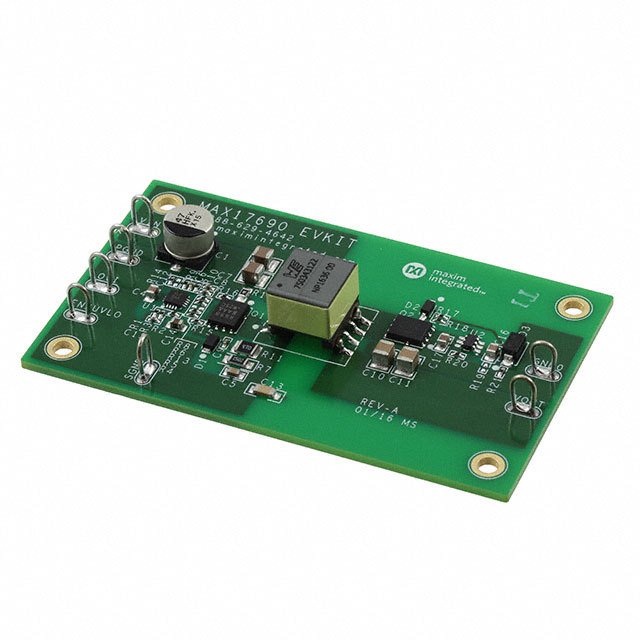

The is an evaluation kit for evaluating MAX17690 no-opto flyback with secondary side synchronous rectification. It is a fully assembled and tested circuit board that demonstrates the operation of an isolated MAX17690 DC to DC converter. This circuit is implemented using MAX17690, a no-opto, flyback controller in a 16 pin TQFN package with an exposed pad. The synchronous rectification on secondary side is enabled by replacing the secondary diode with a MOSFET to achieve 90% efficiency. The circuit uses MAX17606, a secondary side synchronous rectifier driver in 6 pin SOT-23 package for driving secondary side MOSFET. The EV kit output is configured for an isolated +5V and provides up to 1A of output current. The transformer provides galvanic isolation between input and output up to 1875Vrms. It regulates output voltage within ±5% over the line, load and temperature without using auxiliary winding/optocoupler for output voltage feedback.

.

Input voltage range from 18V to 36V

.

Compact design with high frequency 150KHz switching

.

No optocoupler/third winding required to derive feedback signal

.

Proven PCB layout

Do not turn on the power supply until all connections are completed.

Make sure all high-voltage capacitors are fully discharged before handling. Allow 5 minutes after disconnecting input power source before touching circuit parts.
