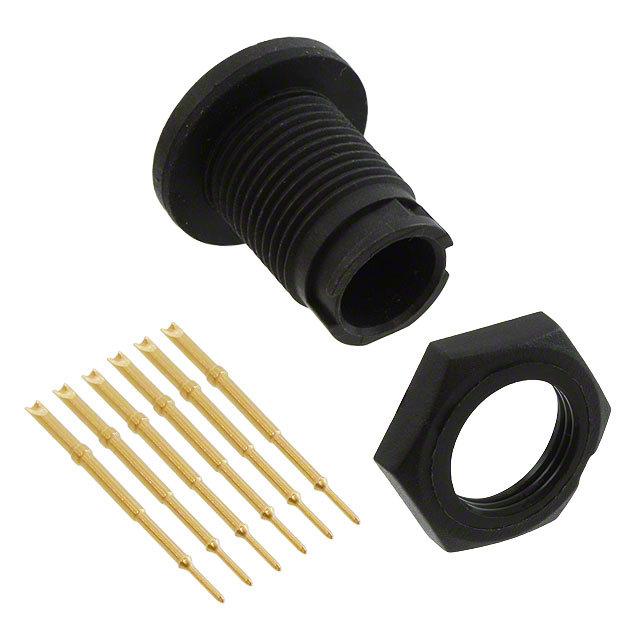

EN2P6M26

标准环形连接器 6-26 M S/C PANEL CON

Sealed Panel Connectors — EN2™ Series

**Features**:

* Sealed to IP78, NEMA 250 6P When Mated

* Pins/Sockets in the Same Housing Size

* Housing, Hex Nut, Coupling Ring, Cable Clamp,

Coupling Ring: Black Thermoplastic

* Contact Resistance: 10 m Ω

* Insulation Resistance: 1000 M Ω

* Voltage Rating: 125 VAC/VDC

得捷:
CONN RCPT MALE 6POS GOLD CRIMP

贸泽:
标准环形连接器 6-26 M S/C PANEL CON

艾睿:
The EN2P6M26 connector from Switchcraft is the best way to connect any inputs you need for your application. It has a plug type gender. This male connector&s;s 6 contacts that are made out of copper alloy. It has a straight body orientation. This device has a maximum current rating of 3 A. This product comes packaged in bulk, so the parts will be stored loosely. This product is 25.2 mm long, 18.2 mm tall and 18.2 mm deep. It uses the solder|crimp termination method. This circular connector has an operating temperature of -40 to 85 °C.

Allied Electronics:
EN2 Series, 6 Pole Panel Mount Circular Conn Socket, Male Contacts, Bayonet Mating

TME:
Connector: circular; Series: EN2; socket; male; 3A; IP68; PIN:6; 125V

Newark:
# SWITCHCRAFT  EN2P6M26  Circular Connector, EN2 Series, Panel Mount Plug, 6 Contacts, Crimp / Solder Pin, Threaded
