ATSAMW25-XPRO

ATMEL  ATSAMW25-XPRO  评估板, ATSAMW25, IEEE 802.11B/G/N

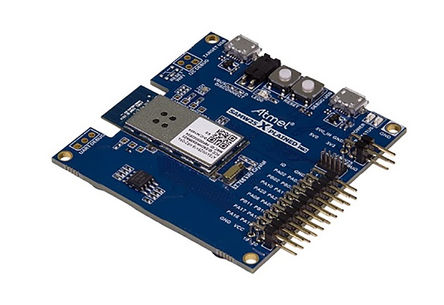

The is a SAM W25 Xplained Pro Evaluation Kit a wireless hardware platform to evaluate the SMART ATSAMW25H18-MR510PB Wi-Fi module which is based on the industry leading low power 2.4GHz IEEE ® 802.11 b/g/n Wi-Fi ATWINC1500 SoC system on chip combined with the ARM cortex -M0+ ATSAMD21G18A microcontroller from Atmel. Supported by the Atmel studio integrated development platform, the kit provides easy access to the features of the Atmel ATSAMW25H18-MR510PB Wi-Fi module and explains how to integrate the device in a custom design. The kit includes an on-board embedded debugger and no external tools are necessary to program or debug the ATSAMW25H18-MR510PB Wi-Fi module. The kit offers additional peripherals to extend the features of the board and ease the development of custom designs.

.

Possible power sources - external power, target USB, embedded debugger USB

.

2x Mechanical buttons user and reset button

.

One yellow user LED

.

One Wi-Fi status LED

.

One extension header

.

Embedded debugger USB

.

Target USB

.

8Mbit Serial flash

.

32kHz Crystal

.

12MHz Crystal EDBG

.

Supported with application examples in Atmel software framework
