CS4270-DZZR

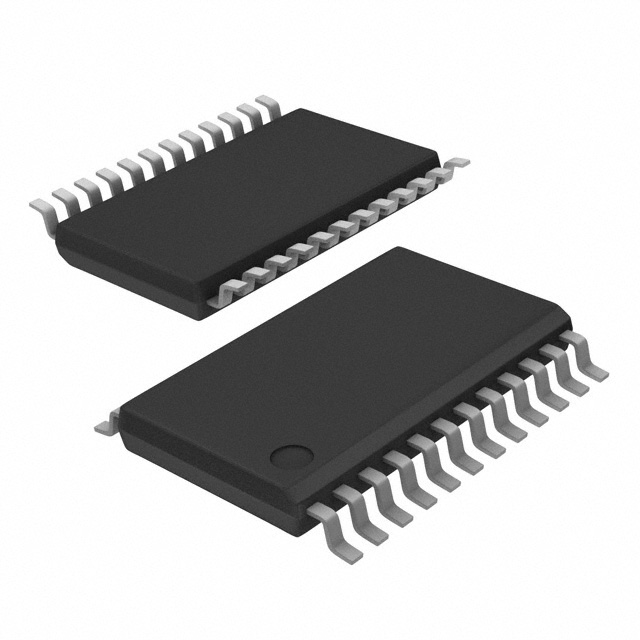

PCM Audio Codec 2ADC / 2DAC Ch Automotive 24Pin TSSOP T/R
General Description
The CS4270 is a high-performance, integrated audio CODEC. The CS4270 performs stereo analog-to-digital A/D and digital-to-analog D/A conversion of up to 24-bit serial values at sample rates up to 216 kHz. Standard 50/15 µs de-emphasis is available for sampling rates of 44.1 kHz for compatibility with digital audio programs mastered using the 50/15 µs pre-emphasis technique.
Integrated level translators allow easy interfacing be tween the CS4270 and other devices operating over a wide range of logic levels.
Independently addressable high-pass filters are available for the right and left channel of the A/D. This allows the A/D to be used in a wide variety of applications where one audio channel and one DC measurement channel is desired.
D/A Features
♦ High Performance
– 105 dB Dynamic Range
– -95 dB THD+N
♦ Selectable Serial Audio Interface Formats
– Left-Justified up to 24-bit
– I²S up to 24-bit
– Right-Justified 16-, and 24-Bit
♦ Control Output for External Muting
♦ On-Chip Digital De-Emphasis
♦ Popguard® Technology
♦ Multi-bit ∆Σ Conversion
♦ Digital Volume Control
♦ Single-Ended Output
A/D Features
♦ High Performance
– 105 dB Dynamic Range
– -95 dB THD+N
♦ Multi-bit ∆Σ Conversion
♦ High-Pass Filter to Remove DC Offsets
♦ Selectable Serial Audio Interface Formats
– Left-Justified up to 24-bit
– I²S up to 24-bit
♦ Single-Ended Input
System Features
♦ Direct Interface with Logic Levels 1.8 V to 5 V
♦ Internal Digital Loopback
♦ Stand-Alone or Control Port Functionality
♦ Single-Ended Analog Architecture
♦ Supports all Audio Sample Rates from 4 kHz to 216 kHz
♦ 3.3 V or 5 V Core Supply
Stand-Alone Mode Feature Set
♦ System Features
– Serial Audio Port Master or Slave Operation
– Single-, Double-, or Quad-Speed Operation
♦ D/A Features
– Auto-Mute on Static Samples
– 44.1 kHz 50/15 µs De-emphasis Available
– Selectable Serial Audio Interface Formats
• Left-Justified up to 24-bit
• I²S up to 24-bit
♦ A/D Features
– High-Pass Filter
– Selectable Serial Audio Interface Formats
• Left-Justified up to 24-bit
• I²S up to 24-bit
Software Mode Feature Set
♦ System Features
– Serial Audio Port Master or Slave Operation
– Internal Digital Loopback Available
♦ D/A Features
– Selectable Auto-mute
– 44.1-kHz De-emphasis Filters
– Configurable Muting Controls
– Volume Control
– Selectable Serial Audio Interface Formats
• Left-Justified up to 24-bit
• I²S up to 24-bit
• Right-Justified 16, and 24-bit
♦ A/D Features
– Selectable High-Pass Filter or DC Offset Calibration
– Selectable Serial Audio Interface Formats
• Left-Justified up to 24-bit
• I²S up to 24-bit
