400-9017

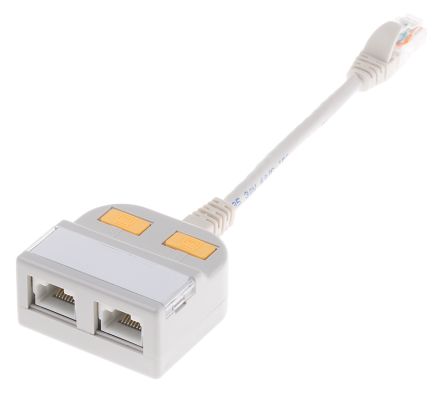

RS Pro Cat5 RJ45 T 形适配器, 2端口, 无屏蔽, 150 mm 长

Cat. 5 T Adapter

Cat. 5

Available shielded or unshielded

Connection cable 150 mm, strain relief, RJ45 plug with locking lever protection

Halogen-free plastic housing, light grey RAL 7035

Outputs are labelled using inserted colour symbols for data or telephone

Labelling field with transparent window

Wiring diagram label on the underside

For splitting an 8-core RJ45 output for two different applications

### Performance features

2 x 10 / 100BaseT |   |   | 1 x 10 / 100BaseT & ISDN |   |

---|---|---|---|---|---

Plug | Receptacle A | Receptacle B | Plug | Receptacle A | Receptacle B

RJ45 | 10 / 100BT | 10 / 100BT | RJ45 | ISDN | 10 / 100BT

1 | 1 |   | 3 | 3 |

2 | 2 |   | 4 | 4 |

3 | 3 |   | 5 | 5 |

6 | 6 |   | 6 | 6 |

5 |   | 1 | 1 |   | 1

4 |   | 2 | 2 |   | 2

7 |   | 3 | 7 |   | 3

8 |   | 6 | 8 |   | 6

### 注

  Use one T adapter on patch panel and one on boxes

### 标准

  Cat. 5 in accordance with ISO/IEC 11801
