RN2301

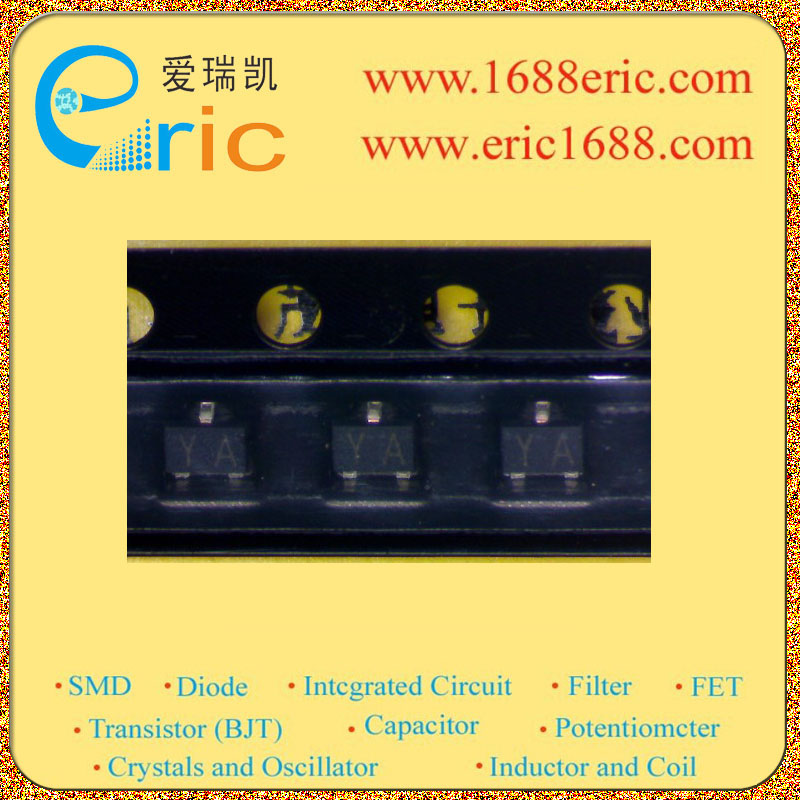

RN2301 带阻尼PNP三极管 -50V -100mA/-0.1A 30 0.1W/100mW SOT-323/SC-70 标记YA 开关电路，逆变器，接口电路，驱动电路

集电极-基极反向击穿电压VBRCBO Collector-Base VoltageVCBO| -50V \---|--- 集电极-发射极反向击穿电压VBRCEO Collector-Emitter VoltageVCEO| -50V 集电极连续输出电流IC Collector CurrentIC| -100mA/-0.1A 基极输入电阻R1 Input ResistanceR1| 4.7KΩ/Ohm 基极-发射极输入电阻R2 Base-Emitter ResistanceR2| 4.7KΩ/Ohm 电阻比R1/R2 Resistance Ratio| 1 直流电流增益hFE DC Current GainhFE| 30 截止频率fT Transtion FrequencyfT| 200MHz 耗散功率Pc Power Dissipation| 0.1W/100mW Description & Applications| Features • Transistor Silicon PNP Epitaxial Type PCT Process • With built-in bias resistors • Simplify circuit design • Reduce a quantity of parts and manufacturing process • Complementary to RN1301to1306 Applications • Switching, Inverter Circuit, Interface Circuit and Driver Circuit Applications 描述与应用| 特点 •PNP的硅外延型（PCT工艺） •内置偏置电阻 •简化电路设计 •减少了部件数量和制造工艺 •互补RN1301to1306的 应用 •开关，逆变电路，接口电路和驱动器电路应用
