2341-05-020

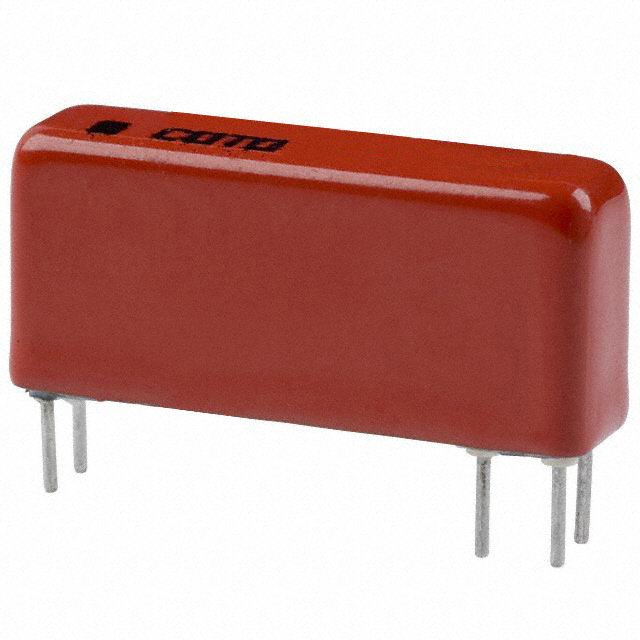

COTO TECHNOLOGY 2341-05-020 Reed Relay, SPDT, 5VDC, 2300 Series, Through Hole, 230Ω, 500mA

The is a multi-pole Reed Relay with hermetically sealed contacts and SPDT contact configuration. The 2300 series coaxial shielded multi-pole reed relay has magnetically shielding steel shell. The 1 form C model is constructed with individual switch capsules for the normally open and magnetically biased normally closed contacts which are more reliable than the spring actuated 1 form C reed switches.

.

Long life and high reliability

.

1.5A Carry current

.

10W Contact rating

.

0.150R at 50mV/10mA Maximum initial static contact resistance

.

0.200R at 0.5V/50mA 100Hz, 1.5ms Maximum initial dynamic contact resistance

.

10¹²R at 100V/25°C/40% RH between all isolated pins Minimum insulation resistance

.

0.5ms Typical operate time

.

0.5ms Typical release time
