R3115Z301A

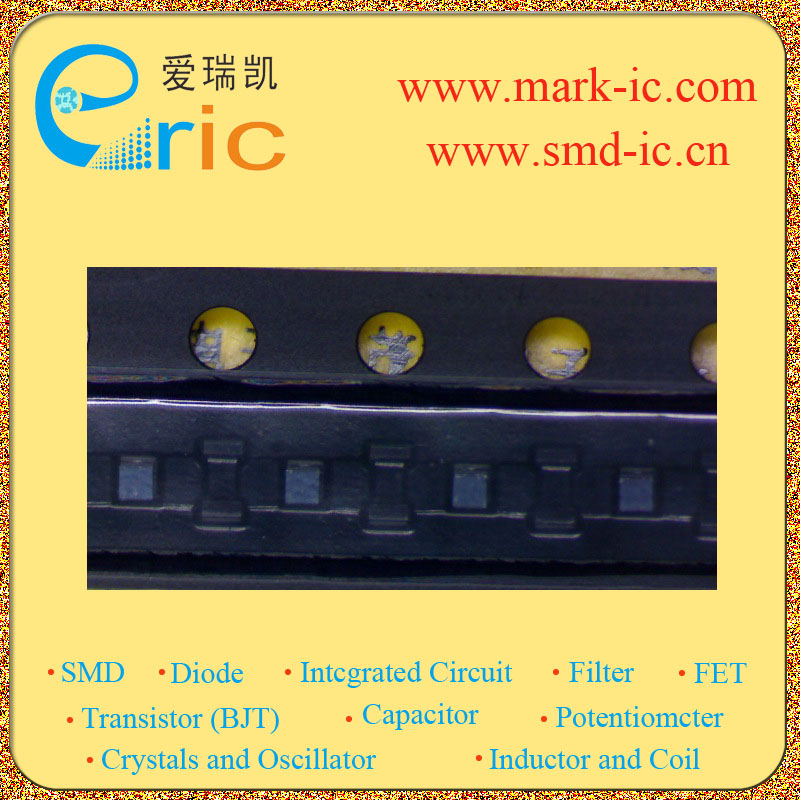

R3115Z301A 电压检测器电源IC WLCSP-4-P2 marking/标记 6 低电压检测器具有输出延时

受检测电压数Number of Voltages Monitored| 1 \---|--- 检测电压/复位阈值电压VDETVoltage - Threshold| 工作电压VINVoltage - Supply| 6.5V 高/低有效复位Reset| 低 Active Low 输出类型Output Type| open drain 看门狗Watchdog| 无 No 功耗PdPower Dissipation| 530mW/0.53W Description & Applications| •LOW VOLTAGE DETECTOR WITH OUTPUT DELAY •Built-in Output Delay Circuit. Typ. 100ms with an external capacitor: 0.022µF •Supply Current Typ. 0.8µA VDD=3.5V •Operating Voltage Range 0.7 to 6.0V Topt=25°C •Detector Threshold 0.9V to 5.0V •Accuracy Detector Threshold ±2.0% •Temperature-Drift Coefficient of Detector Threshold Typ. ±100ppm/°C •Two Output Types Nch Open Drain and CMOS •Micro controller and Logic Circuit Reset •Battery Checker •Window Comparator •Wave Shaping Circuit •Battery Back-up Circuit •Power Failure Detector 描述与应用| •低电压检测器具有输出延时 •内置延迟电路输出。典型。 100ms的一个外部电容：0.022μF •供电电流典型。 0.8μA（VDD=3.5V） •工作电压范围0.7〜6.0V（TOPT= 25°C） •检测阈值0.9V至5.0V •精度检测阈值±2.0％ •温度漂移系数的检测阈值典型值。温度系数±100ppm/°C •两个输出类型N沟道开漏和CMOS •微控制器和逻辑电路复位 •电池检查 •窗口比较器 •波形整形电路 •备用电池电路 •电源故障检测器
