RJD1212-0050

音频/视频电缆组件, RJ45插座至2x XLR插头, 19.68 ", 500 mm, 黑色, Amphe Dante

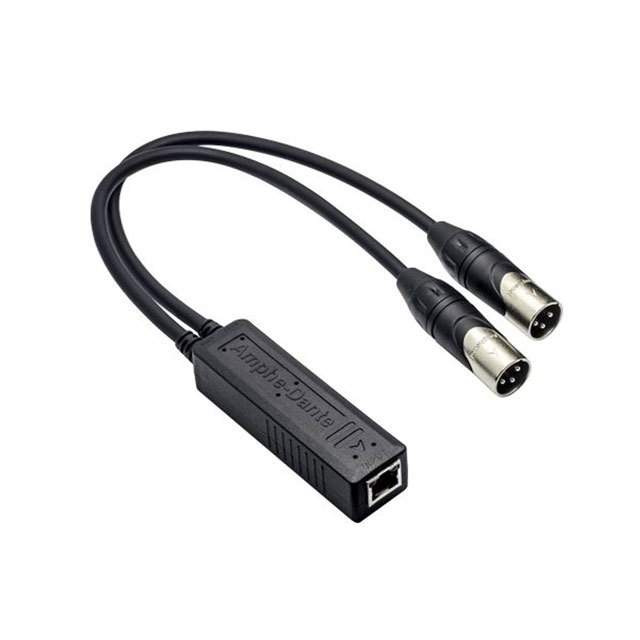

The from is a Dante® audio to analogue audio adapter with one RJ45 Ethernet Dante input and dual XLR male analogue output in a moulded housing. It enables simple connection of analogue equipment to a Dante network and can receive audio channels from a Dante network and provide studio-quality, low-latency audio via an XLR connector to analogue audio equipment. Any audio available on the Dante network can be routed via the XLR outputs to an amplifier, powered speaker, mixing console, digital signal processor DSP or other analogue audio device. This device requires a 48V power source which must be provided by a Power over Ethernet PoE switch or a PoE injector.

.

2W power consumption

.

PVC 60P black colour housing

.

Analogue audio output is +4dBu at 0dBFS, output impedance is 150 ohm balanced /75ohm unbalanced

.

DANTE® AUDIO with 100Mbps speed, bit depth of 24bit and 48KHz default sample rate

.

IP41 protection

.

Operating temperature range from -5°C to +60°C 23°F to +140°F

.

RJ45 metal connector with integrated LED

.

Length is 500mm

.

Resilient cable strain relief
