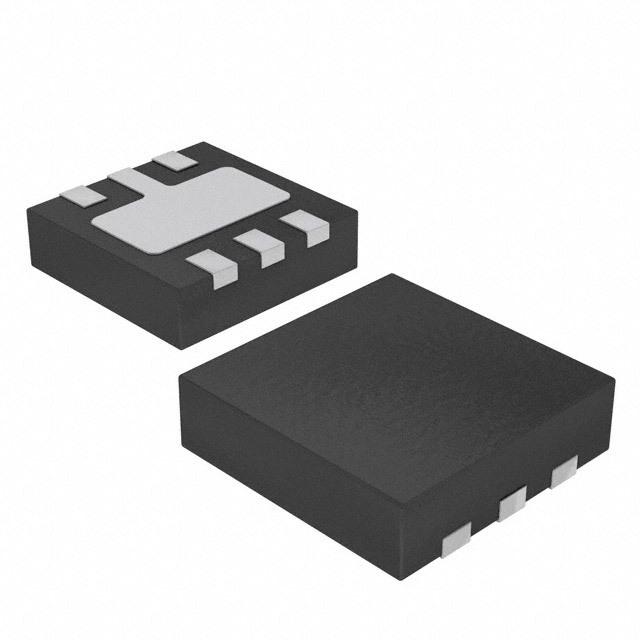

AP7335-18SNG-7

正 Vin=6V Vout=1.8V~1.8V 300mA 65dB@1kHz

PMIC - 稳压器 - 线性 输出 300mA 6-DFN2020（2x2）

立创商城:
正 Vin=6V Vout=1.8V~1.8V 300mA 65dB@1kHz

得捷:
IC REG LIN 1.8V 300MA 6DFN2020

艾睿:
Say goodbye to unstable voltages with this LDO AP7335-18SNG-7 linear regulator from Diodes Zetex. It has an overall accuracy of ±2 %. Its typical dropout voltage at current is 0.17@300mA V. This voltage regulation device&s;s single output can produce a current up to 0.3 A. Supply your circuit with sufficient power by implementing this, which requires a minimum input voltage of 2 V that does not exceed 6 V. With a fixed output that has a voltage of 1.8 V, this is power management at its best. At a load regulation of 0.6% and line regulation of 0.2%/V a constant current can be produced at the output of your circuit. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This voltage regulation device has an operating temperature range of -40 °C to 85 °C. The maximum dropout voltage is 0.3@300mA V. Its polarity is positive.

安富利:
LDO Regulator Pos 1.8V 0.3A 6-Pin DFN EP T/R

Chip1Stop:
LDO Regulator Pos 1.8V 0.3A 6-Pin DFN EP T/R

Verical:
LDO Regulator Pos 1.8V 0.3A 6-Pin UDFN EP T/R

Win Source:
300mA, Low Quiescent Current, Fast Transient Low Dropout Linear Regulator
