THD 10-4813WIN

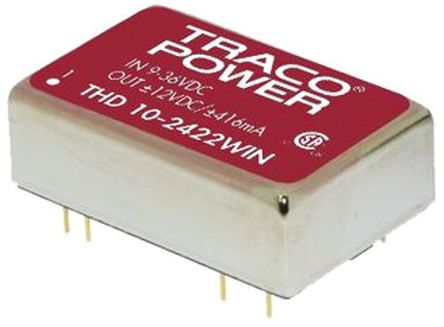

Traco 10W 调节隔离直流到直流转换器 - THD10WIN 系列Tracopower THD 10-WIN 是一系列 10W 调节隔离高性能直流到直流转换器,具有薄型封装和宽输入电压范围。 这些隔离高性能直流到直流转换器具有符合 EN 55022 A 类标准的内部 EMI 滤波器和全贴片式设计。 THD 10-WIN 具有 DIP-24 标准封装,让这些直流到直流转换器成为许多成本要求严格的应用的简易替代品。4:1 超宽输入电压范围 内部 EMI 滤波器符合 EN 55022 A 类标准,无外部组件 效率高达 87% 工作温度范围 - 40°C 至 +85°C 无最小负载要求 输入/输出隔离 1,500V 直流 过载保护 ### 标准UL/cUL 60950-1, IEC/EN 60950-1### Traco - 10W 至 15W
The from Tracopower is a THD 10WIN series 10W DC to DC converter in 24 pin DIP package. The THD 10WIN series is designed for an optimized cost/performance ratio of DC to DC converters with output power of 10W. They come with an internal EMI-filter to meet EN55022, class A without external components. General features like no minimum load requirement, overload protection and high efficiency make these converters easy to design in. With the popular DIP-24 standard package they are also a drop in replacement for many cost critical applications.
- .
- Input voltage range from 18VDC to 75VDC 48VDC nominal
- .
- Output voltage is 15VDC
- .
- Maximum output current is 666mA
- .
- Typical efficiency is 87%
- .
- I/O isolation voltage is 1500VDC, typical I/O isolation capacitance is 1000pF
- .
- I/O isolation resistance is >1000Mohm at 500VDC
- .
- Input current at no load is 20mA typical
- .
- Switching frequency is 330KHz, ultra-wide 4:1 input voltage range
- .
- Operating temperature range from -40°C to +85°C
- .
- UL/cUL 60950-1, IEC/EN 60950-1 safety standards
