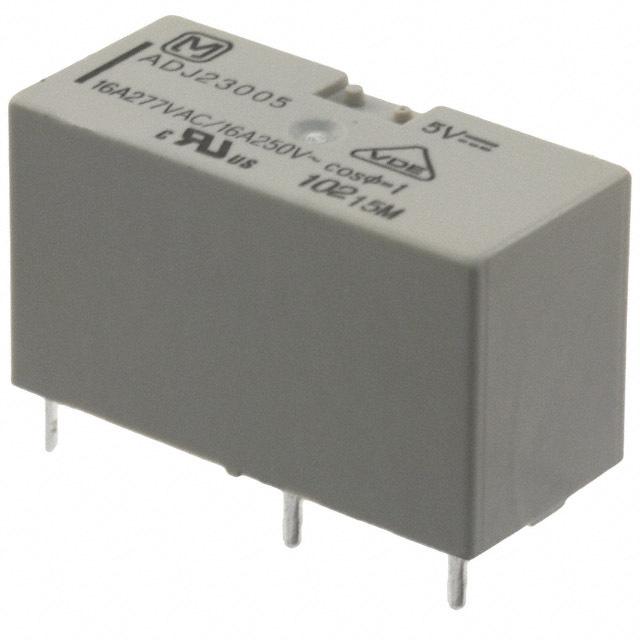

ADJ23024

1极/ 2极16A两极电源继电器触点排列品种 1-pole/2-pole 16A polarized power relays Variety of contact arrangements

FEATURES

1\. Variety of contact arrangements

   Wide lineup of 1 Form C, 1 Form A, 1 Form B, 2 Form C, 2 Form A, 2 Form B, 1 Form A 1 Form B.

2\. Latching operation

   Latching via a polarized magnetic circuit structure allows remote operation and lower energy consumption

3\. Compact with high capacity

   16A 1-pole type contact rating in a compact 29×13×16.5 mm L×W×H size.

4\. Low power consumption

   1 coil latching: 150mW

   2 coil latching, single side stable: 250mW

5\. High insulation

   Both clearance and creepage distance between coil and contact are at 8 mm min.

6\. With operation verification function

   A test button manual lever type to facilitate circuit checks is also available 1 Form C, 1 Form A, 1 Form B types only.



TYPICAL APPLICATIONS

1\. FA equipment brake circuits of industrial machine and robots, etc.

2\. Electric power devices remote surveillance devices, etc.

3\. Household appliance networks Motor control and lighting control, etc.

4\. Time switches
