RE936-07

RE936-07 多用途适配器 SOP28/SOIC28/SOIC28w/HSOP28/SO28适配电路板，用于 SOP28、SOIC28、SOIC28w、HSOP28、SO28 环氧玻璃纤维 FR4 1.50 mm 双面 35 μm 铜 电镀通孔 PTH 表面化学处理 镍/金 焊接停止掩膜 孔间隔 2.54 mm 两个试验区，带 2 x 4 方形垫 2.20 x 2.20 mm 屏蔽垫和冷却垫 ### 表面安装板

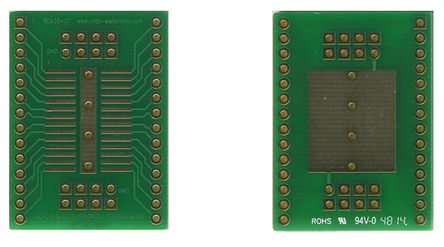

The is a 36.83 x 26.67mm Adaption Circuit Board, made of 1.5mm epoxy fibreglass and 35µm Cu double-sided construction with Ni/Au surface. This 1.27mm circuit board features solder stop mask and comes with shield pad and cooling pad. This plated through hole multi adapter circuit board suitable for SOP28, SOIC28, SOIC28W, HSOP28 and SO28 devices.

.

2.54 and 1.27mm Hole spacing

.

2.2 x 2.2mm Two experimenting areas with 2 x 4 square pads
