SRN8040-150M
BOURNS SRN8040-150M 表面贴装功率电感器, SRN8040系列, 15 µH, ± 20%, 屏蔽, 0.07 ohm, 2.4 A

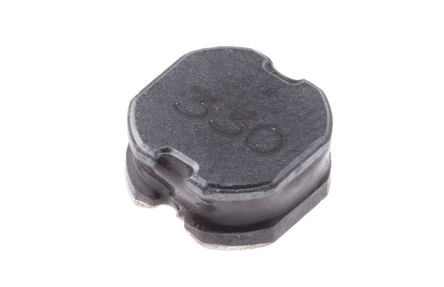

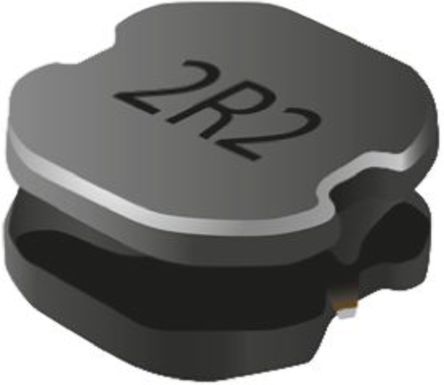

SRN8040 系列半磁性屏蔽线绕扼流圈
Bourns SRN8040 系列贴片式半屏蔽功率器，电感范围为 0.5 至 330uH，额定电流高达 12A，工作温度为 -55°C 至 +125°C。这些电感器适用于汽车行业，符合 AEC-Q200 标准。
### 应用
汽车系统：驾驶员辅助系统、信息、照明、娱乐
直流 - 直流转换器
电源
电视
数字视频
### 认可
AEC-Q200
得捷:
FIXED IND 15UH 2.4A 70 MOHM SMD
欧时:
### SRN8040 Series Semi Magnetically Shielded Wire Wound ChokesBourns® SRN8040 Series SMD Semi-shielded Power Inductors with a high rated current. Component height of 4mm Inductance range from 0.5 to 100uH Rated current of up to 10A Applications include: DC/DC converters; Notebook computers; Digital video cameras; HDDs; Cell phones; Televisions, LCD displays ### Bourns 非标准表面安装电感器（扼流圈）
立创商城:
15uH ±20% 2.4A 70mΩ
e络盟:
电感, 半屏蔽, 15UH, 2.4A, 20%
艾睿:
Does your electronic circuit design require filtering, power supplies, and other similar functions? Then this power SRN8040-150M surface mount inductor from Bourns is perfect for you! This SMD inductor has an operating temperature range of -40 °C to 125 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. It has a tolerance of 20%. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 14MTyp Hz. It has an inductance of 15u H. This device utilizes wirewound technology. This SMD inductor has a maximum DC current of 2.4 A with a maximum resistance of 70m Ohm. This product is 8.3 mm long, 4 mm tall and 8.3 mm deep.
Allied Electronics:
Inductor; Power; Semi-Shielded; Ind 15 uH; Tol 20%; Cur-Rtg 2.4 A; SMT
Chip1Stop:
Inductor Power Semi-Shielded Wirewound 15uH 20% 100KHz 15Q-Factor Ferrite 2.4A 70mOhm DCR Tape and Reel
Verical:
Inductor Power Semi-Shielded Wirewound 15uH 20% 100KHz 15Q-Factor Ferrite 2.4A 0.07Ohm DCR T/R
Newark:
# BOURNS SRN8040-150M Surface Mount Power Inductor, SRN8040 Series, 15 µH, 2.4 A, 2.7 A, Shielded, 0.07 ohm
MASTER:
Inductor Power Semi-Shielded Wirewound 15uH 20% 100KHz 15Q-Factor Ferrite 2.4A 70mOhm DCR T/R
Online Components:
Inductor Power Semi-Shielded Wirewound 15uH 20% 100KHz 15Q-Factor Ferrite 2.4A 70mOhm DCR Tape and Reel
Electro Sonic:
Inductor Power Semi-Shielded Wirewound 15uH 20% 100KHz 15Q-Factor Ferrite 2.4A 70mOhm DCR T/R
