BD9870FPS-E2

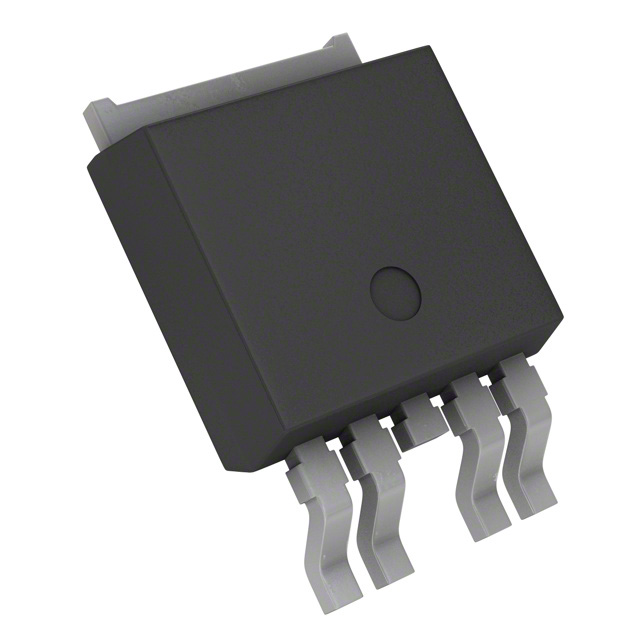

ROHM  BD9870FPS-E2  直流-直流开关降压逐步递减稳压器, 可调, 8V-35V输入, 1V-28V输出, 1.5A输出, TO-252-5

The is a single-channel step-down switching regulator Buck Converter with Integrated FET, a P-channel MOSFET capable of PWM operation at 900kHz. It employs the use of smaller coil and circuitry to eliminate the need for external compensation. The circuitry consists only of a diode, coil and ceramic capacitor thus reducing the board size significantly.

.

Built-in P-channel FET ensures high efficiency

.

Output voltage adjustable via external resistors

.

Over-current and thermal shutdown protection circuits built-in

.

ON/OFF control via STBY pin

.

Ceramic output capacitor compatibility
