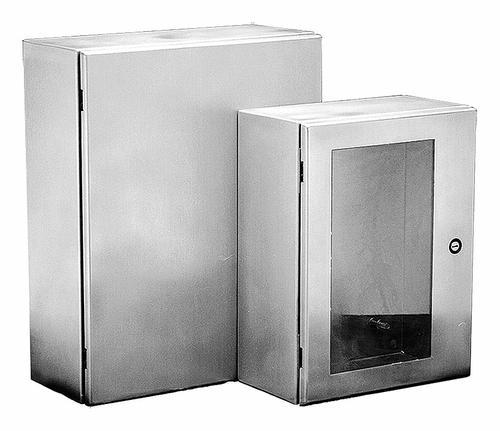

CSD302410SS

Metallic Enclosure 30inch Height x 24inch Width x 10inch Depth - GR0735975

**Applications:**

For indoor or outdoor applications that require protection from chemicals and water. CONCEPT™ Enclosures feature streamlined styling with an attractive stroked finish and flush quarter-turn Latch for secure closure. Available in solid- and window-door models.

**Specifications:**

* Manufactured from Type 304 or Type 316L Stainless Steel

* Minimum-Width Body Flange Provides Maximum Body Opening

* External Formed 90-Degree Body Flange

* Panel Mounting Studs Fit Optional CONCEPT™ Panels and Other Accessories

* Mounting Holes in Back of Body for Direct Mounting or for Optional External Mounting Brackets

* Type 316 Stainless Steel Hidden Hinges Promote Clean Aesthetic Appearance

* Corner Formed Doors Are Interchangeable and Easily Removed by Pulling Clip-Style Hinge Pins

* Provision on Door Except Window-Door Style and When W = 12 in. for Thermoplastic Data Pocket

* Provision on Door Except Window-Door Style and When W = 12 in. for Optional Doorstop Kit

* Quarter-Turn Latch Furnished with Flush Slotted Insert

* Seamless Foam-in-Place Gasket

* Self-Grounding Latch System with Double Seal

* Bonding Provision on Door; Grounding Stud on Body

* Furnished Hardware Kit Consists of Panel-Mounting Nuts, Panel-Grounding Hardware and Sealing Washers for Wall-Mounting Holes

* Installation Instructions

* Window Doors Have a Clear Polycarbonate Window

**Finish:**

Door and body have smooth #4 brushed finish.

**Industry Standards:**

* Mounting Brackets Required to Meet UL/CSA External Mounting Requirements

* UL 508A Listed; Type 3R, 4, 4X, 12; File No. E61997

* cUL Listed per CSA C22.2 No. 94; Type 3R, 4, 4X, 12; File No. E61997

* NEMA/EEMAC Type 3R, 4, 4X, 12, 13

* CSA File No. 42186; Type 4, 4X, 12

* VDE IP66

* IEC 60529, IP66

* Meets NEMA Type 3RX Requirements
