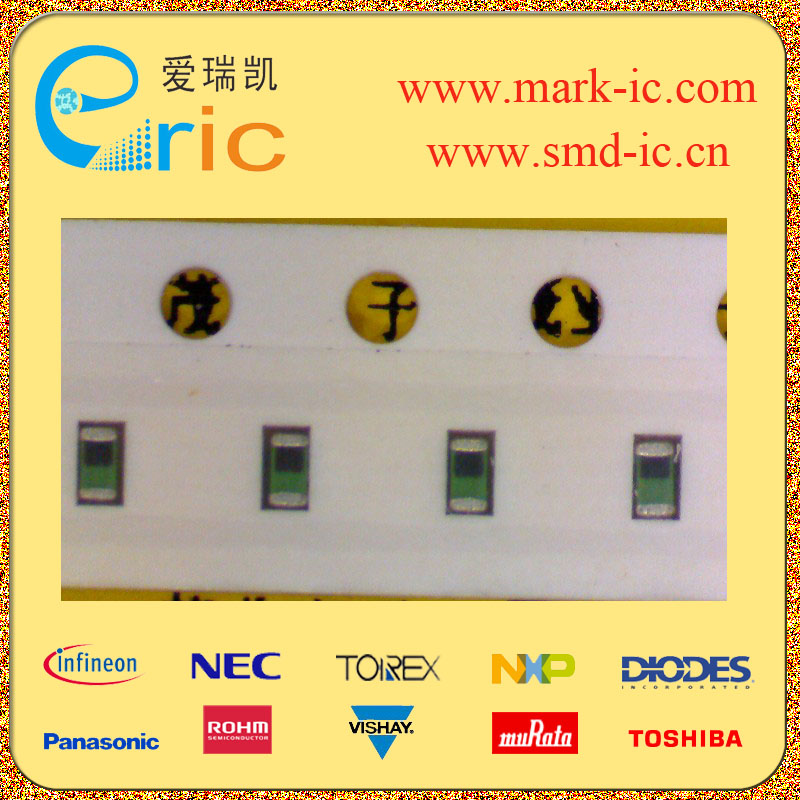

LQG11A56NJ00T1M05-01

LQG11A56NJ00T1M05-01 56nH 0603-56NJ

值Inductance| 56nH \---|--- 误差Tolerance| ±5% 额定电流Current Rating| 300mA 饱和电流Current - Saturation| 不同频率时的Q值Q @ Frequency| 12 @ 100MHz 自振谐频率SRFFrequency - Self Resonant| 1.1GHz DC电阻DCRDC Resistance DCR| 0.75Ω/Ohm 屏蔽Shielding| 无屏蔽 Unshielded Description & Applications| Multilayer Chip Inductor LQG10A/11A Series for High Frequency The LQG10A/11A series are chip inductors specifically designed for high frequency applications. The LQG10A/11A series is designed to realize stable characteristics in high frequency range applying integrated multilayer process. The integrated multilayer process enables a wide range of inductance values with tight tolerance. FEATURES 1. High-Q, stable inductance in high frequency is achieved by the unique low-capacitance structure. It is suitable for mobile communication equipment. 2. The small size of LQG10A 1.0 Z 0.5 Z 0.5mm is ideal for small mobile equipment. 3. The external electrodes with nickel barrier structure provide excellent solder heat resistance. APPLICATIONS High frequency circuit of telecommunication equipment such as CDMA, DECT, PHS, PCS, PCN, GSM and DCS. 描述与应用| 高频叠层片式电感器LQG10A/11A系列 LQG10A/11A系列是专为高频应用的片式电感器。LQG10A/11A系列应用在高频率范围集成多层工艺，旨在实现稳定的特点。集成的多层过程实现了宽范围的电感值与严格的公差。 特点 1。高Q值，高频率的稳定电感是独特的低电容结构。它适合用于移动通信的设备。 2。小尺寸LQG10A（1.0Ž0.5 Z0.5毫米）是小型移动设备的理想选择。 3。镍隔板结构为外部电极提供优良的焊接耐热性。 应用 电信设备的高频电路 如CDMA，DECT，PHS，PCS，PCN，GSM和DCS。
