BTS5200-4EKA

**4xHSS 200mOhm 12V SO14 SMD **

Description:

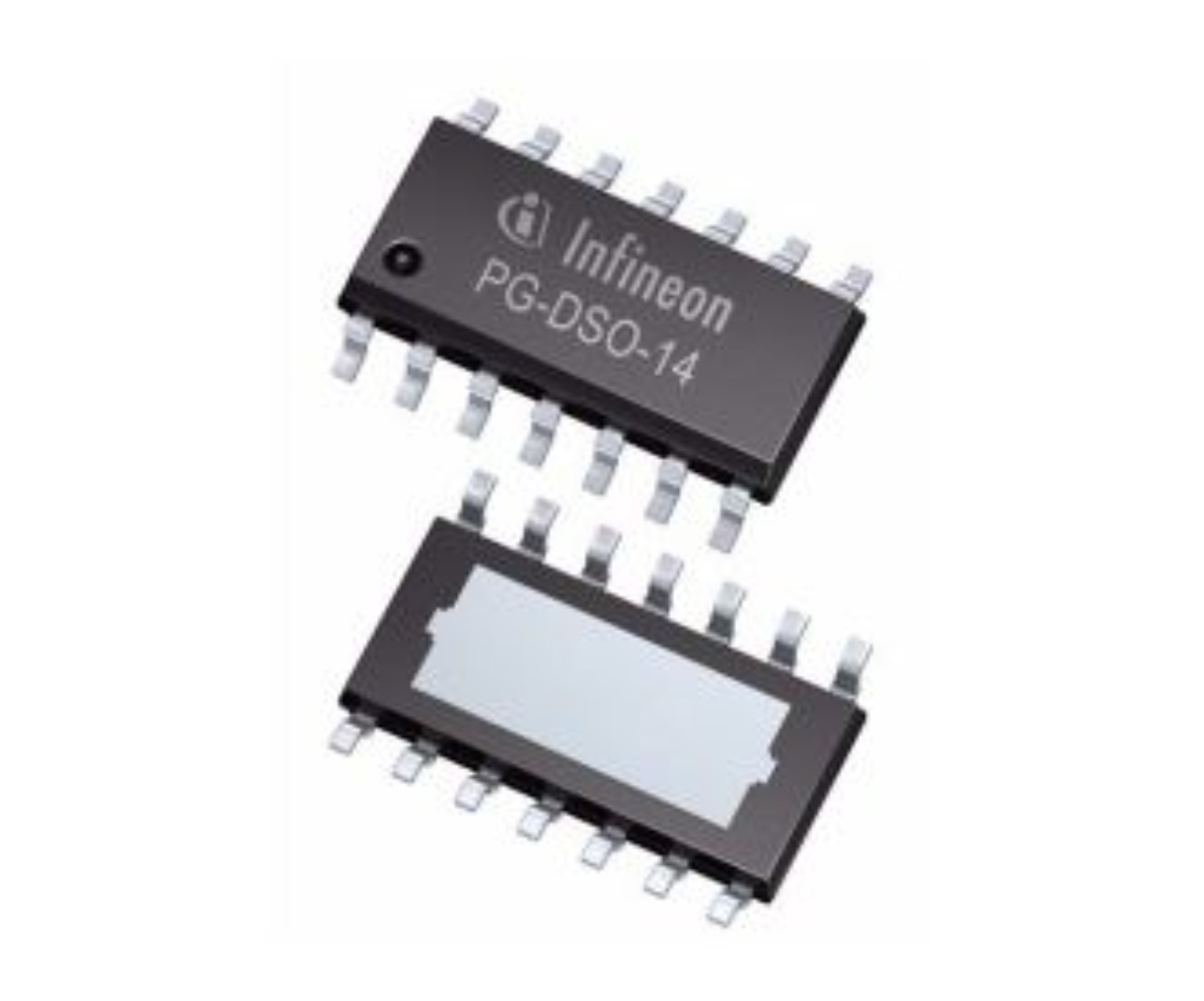

The is a 200 m Ω quad channel Smart High-Side Power Switch, embedded in a PG-DSO-14-48- EP, Exposed Pad package, providing protective function s and diagnosis. The power transistor is built by an N-channel vertical power MOSFET with charge pump. The device is integrated in Smart6 technology. It is specially designed to drive lamps up to R5W, as well as LEDs in the harsh automotive environment.

Summary of Features:

.

Quad channel device

.

Very low stand-by current

.

3.3 V and 5 V compatible logic inputs

.

Electrostatic discharge protection ESD

.

Optimized electromagnetic compatibility

.

Logic ground independent from load ground

.

Very low power DMOS leakage current in OFF state

.

Green product RoHS compliant

.

AEC qualified
