MICRF022BN

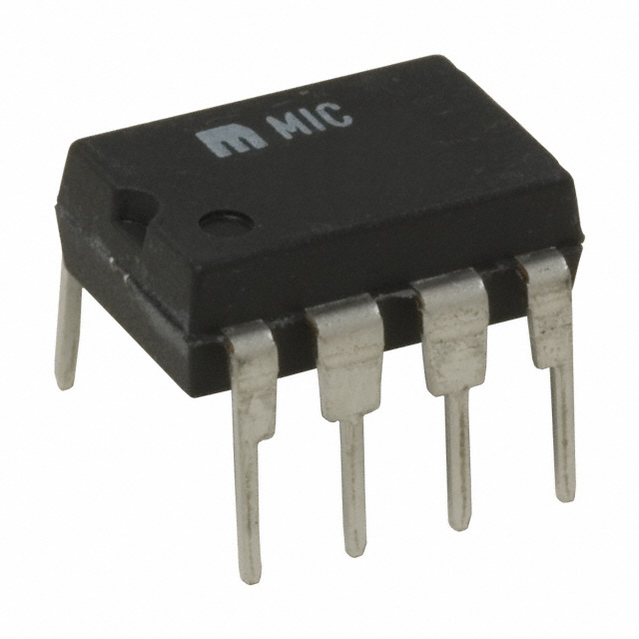

RF Receiver ASK/OOK 5V 8Pin PDIP

General Description

The MICRF002, an enhanced version of the MICRF001 and MICRF011, is a single chip OOK ON-OFF Keyed Receiver IC for remote wireless applications, employing ’s latest QwikRadiotm

technology . This device is a true “antenna-in, data-out” monolithic device. All RF and IF tuning is accomplished automatically within the IC, which eliminates manual tuning and reduces production costs. Receiver functions are completely integrated. The result is a highly reliable yet extremely low

cost solution for high volume wireless applications. Because the MICRF002 is a true single-chip radio receiver , it is extremely easy to apply , minimizing design and production costs, and improving time to market.

Features

·  Complete UHF receiver on a monolithic chip

·  Frequency range 300 to 440 MHz

·  Typical range over 200meters with monopole antenna

·  Data rates to 2.5kbps SWP, 10kbps FIXED

·  Automatic tuning, no manual adjustment

·  No Filters or Inductors required

·  Low Operating Supply Current—240 mA at 315MHz 10:1 Duty Cycle

·  ShutdownMode for Duty-Cycle Operation in excess of 100:1

·  WakeupFunction to Enable External Decoders and Microprocessors

·  Very low RF re-radiation at the antenna

·  CMOS logic interface to standard decoder and microprocessor ICs

·  Extremely low external part count

Applications

·  Automotive Remote Keyless Entry

·  Long Range RFID

·  Remote Fan/Light Control

·  Garage Door/Gate Openers
