74ABT541N

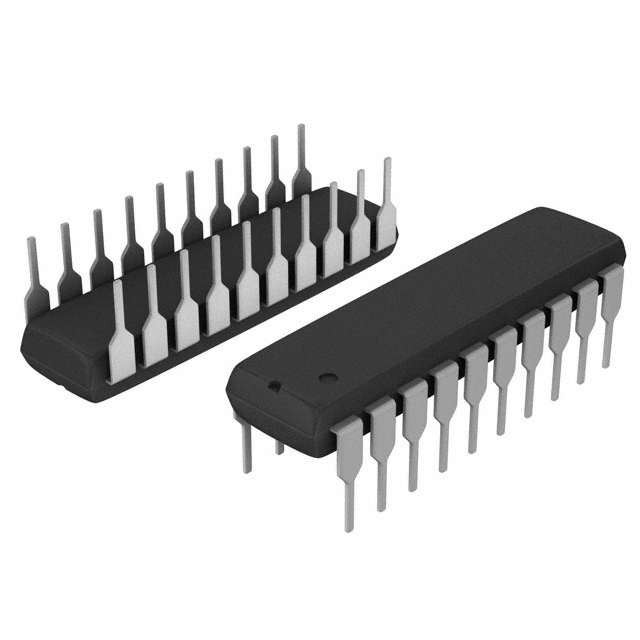

IC BUFF/DVR TRI-ST 8Bit 20DIP

DESCRIPTION

The 74ABT541 high-performance BiCMOS device combines low static and dynamic power dissipation with high speed and high output drive.

The 74ABT541 device is an octal buffer that is ideal for driving bus lines. The outputs are all capable of sinking 64mA and sourcing 32mA. The device features input and outputs on opposite sides of the package to facilitate printed circuit board layout.

FEATURES

• Octal bus interface

• Functions similar to the ’ABT241

• Provides ideal interface and increases fan-out of MOS Microprocessors

• Efficient pinout to facilitate PC board layout

• 3-State buffer outputs sink 64mA and source 32mA

• Power-up 3-State

• Latch-up protection exceeds 500mA per Jedec JC40.2 Std 17

• ESD protection exceeds 2000 V per MIL STD 883 Method 3015 and 200 V per Machine Model

• Live insertion/extraction permitted
