RM46L840ZWTT

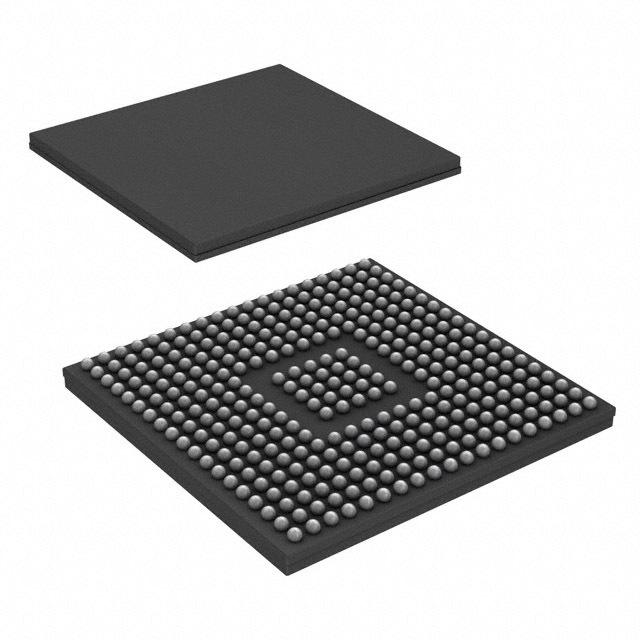

MCU 16Bit/32Bit RM46Lx40 ARM Cortex R4F RISC 1280KB Flash 1.2V 337Pin NFBGA

* High-Performance Microcontroller for Safety-Critical Applications * Dual CPUs Running inLockstep * ECC on Flash and RAM Interfaces * Built-In Self-TestBIST for CPU and On-chip RAMs * Error Signaling Module With ErrorPin * Voltage and Clock Monitoring * ARM Cortex-R4F 32-Bit RISC CPU * 1.66 DMIPS/MHz With8-Stage Pipeline * FPU With Single- andDouble-Precision * 12-Region Memory Protection Unit MPU * OpenArchitecture With Third-Party Support * Operating Conditions * Up to 200-MHz System Clock * Core Supply Voltage VCC: 1.14 to 1.32V * I/O Supply Voltage VCCIO: 3.0 to 3.6V * Integrated Memory * 1.25MB of Program Flash WithECC RM46L840 * 1MB ofProgram Flash With ECCRM46L440 * 192KB of RAM With ECC RM46L840 * 128KB of RAM With ECC RM46L440 * 64KB of Flash for Emulated EEPROM WithECC * 16-Bit External Memory Interface EMIF * Common Platform Architecture * Consistent Memory Map AcrossFamily * Real-Time Interrupt R Timer OSTimer * 128-Channel Vectored Interrupt ModuleVIM * 2-Channel Cyclic Redundancy Checker CRC * Direct Memory Access DMA Controller * 16 Channels and32 Peripheral Requests * Parity Protection for Control PacketRAM * DMA Accesses Protected by DedicatedMPU * Frequency-Modulated Phase-Locked Loop FMPLL With Built-In SlipDetector * Separate Nonmodulating PLL * IEEE 1149.1 JTAG, Boundary Scan and ARM CoreSight Components * Advanced JTAG Security Module AJSM * Calibration Capabilities * Parameter Overlay ModulePOM * 16 General-Purpose Input/Output GPIO Pins Capable of GeneratingInterrupts * Enhanced Timing Peripherals for Motor Control * 7 Enhanced Pulse Width Modulator ePWMModules * 6 Enhanced Capture eCAP Modules * 2 EnhancedQuadrature Encoder Pulse eQEP Modules * Two Next Generation High-End Timer N2HET Modules * N2HET1: 32 ProgrammableChannels * N2HET2: 18 Programmable Channels * 160-WordInstruction RAM Each With Parity Protection * Each N2HET Includes Hardware AngleGenerator * Dedicated High-End Timer Transfer Unit HTU for Each N2HET * Two 12-Bit Multibuffered Analog-to-Digital Converter MibADCModules * ADC1:24 Channels * ADC2:16 Channels Shared With ADC1 * 64 Result Buffers Each With Parity Protection * Multiple Communication Interfaces * 10/100 Mbps Ethernet MACEMAC * IEEE 802.3 Compliant 3.3-V I/O Only * SupportsMII, RMII, and MDIO * Three CAN Controllers DCANs * 64 MailboxesEach With Parity Protection * Compliant to CAN Protocol Version 2.0A and2.0B * Inter-IntegratedCircuit I2C * Three Multibuffered Serial PeripheralInterface MibSPI Modules * 128 Words Each With ParityProtection * 8 Transfer Groups * Upto Two Standard Serial Peripheral Interface SPI Modules * Two UART SCIInterfaces, One With Local Interconnect Network LIN2.1 InterfaceSupport * Packages * 144-PinQuad Flatpack PGE [Green] * 337-BallGrid Array ZWT [Green]

RM46L840ZWTT PDF数据文档
