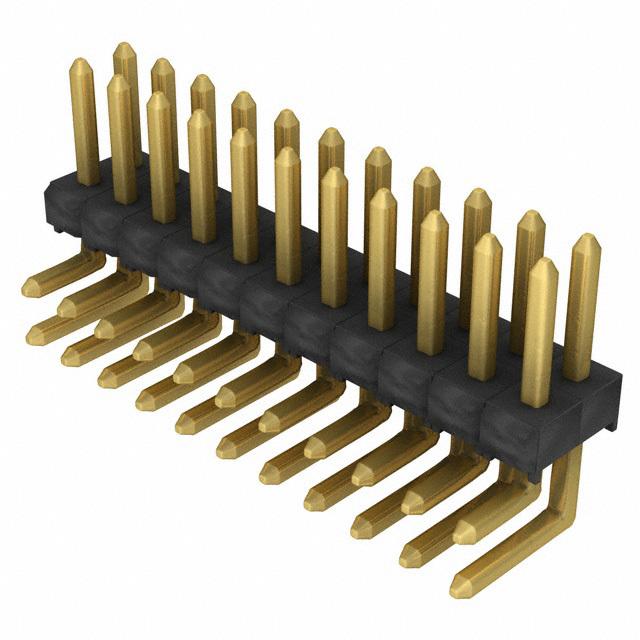

TSW-111-08-G-D-RA

SAMTEC TSW-111-08-G-D-RA Board-To-Board Connector, 2.54mm, 22Contacts, Header, TSW Series, Through Hole, 2Rows

针座 通孔，直角 22 位置 0.100"（2.54mm）

得捷:
CONN HEADER R/A 22POS 2.54MM

艾睿:
Thanks to Samtec&s;s unshrouded TSW-111-08-G-D-RA header connector, you can reduce the possibility of accidentally shorting out any pins on your printed circuit. This HDR connector&s;s 22 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a right angle body orientation. It has a maximum voltage rating of 450 VAC. This is a 2-row connector. It has a header type gender. Its pitch is 2.54 mm. This device has a maximum current rating of 6.3 A/contact. This product is 27.94 mm long, 5.56 mm tall and 12.44 mm deep. This connector has an operating temperature of -55 to 125 °C. TSW-111-08-G-D-RA is housed in black polyester. It uses the solder termination method.

Newark:
# SAMTEC  TSW-111-08-G-D-RA  Board-To-Board Connector, 2.54 mm, 22 Contacts, Header, TSW Series, Through Hole, 2 Rows

Win Source:
CONN HEADER R/A 22POS 2.54MM / Connector Header Through Hole, Right Angle 22 position 0.100" 2.54mm
