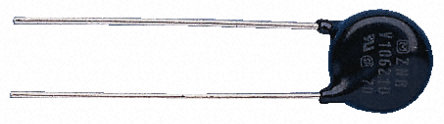

ERZV14D821

PANASONIC ELECTRONIC COMPONENTS  ERZV14D821  TVS压敏电阻, V系列, 510 V, 670 V, 1.355 kV, 片状 14mm, 高涌流抑制

510 Vac 670 Vdc 5 kA “ZNR” Transient/Surge Absorber

欧时:
Panasonic 280pF 50A 1355V 金属氧化物压敏电阻 ERZV14D821, 16 Dia. x 8.1mm

e络盟:
TVS压敏电阻, 510 V, 670 V, V系列, 1.355 kV, 片状 14mm, 氧化锌非线性电阻 ZNR

艾睿:
Are you looking for a nonlinear resistor? This ERZ-V14D821 MOV from Panasonic will exceed your needs! Its maximum surge current is 5000 A. This device&s;s clamping current is 50 A and clamping voltage is 1355 V. This part has a pitch of 7.5 mm. This voltage dependent resistor has an operating temperature of -40 to 85 °C. This product comes packaged in bulk, so the parts will be stored loosely. This varistor has a voltage of 820 V. Its capacitance value is 280pF. The maximum AC voltage rating is 510 VAC and the maximum DC voltage rating is 670 VDC. This product is 19 mm tall and 8.1 mm deep with a diameter of 16 mm.

安富利:
Var 510VAC/670VDC 5000A 820V Radial Bulk

Chip1Stop:
Var 510VAC/670VDC 5000A 820V Radial Bulk
