TDA3664

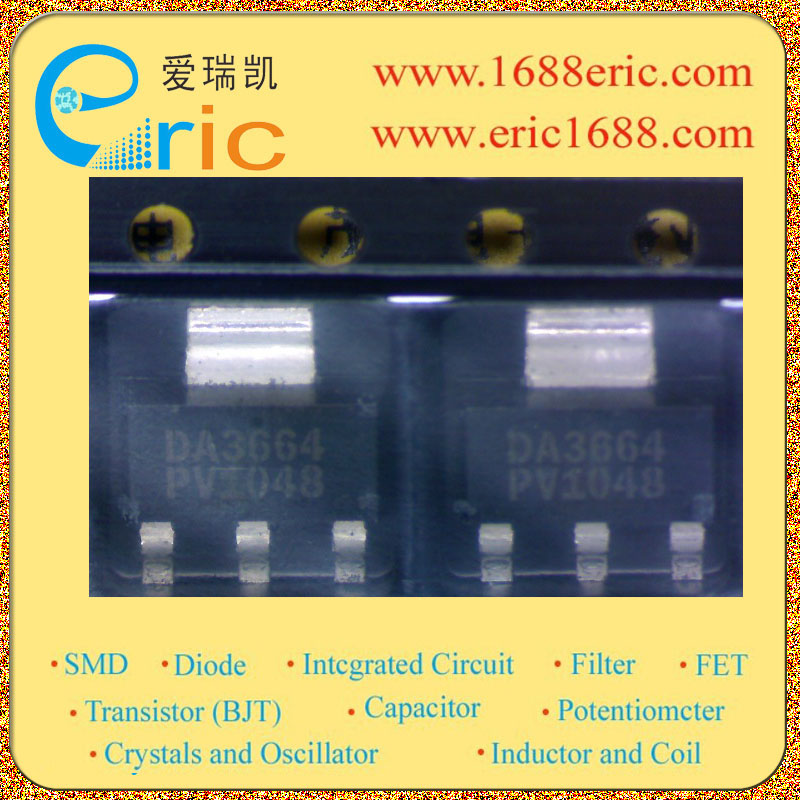

TDA3664 LDO电压调整器/稳压电源IC 5V 180mV/0.18V 带使能脚EN/CE SOT-223 marking/标记 DA3664 短路保护 过热保护

电路数量Number of Regulators| 1 \---|--- 输入电压VINVoltage - Input| 45V 输出电压VOUTVoltage - Output| 5V 输出电流IoCurrent - Output| 50mA 最大压降VDOVoltage - Dropout| 180mV/0.18V 带使能脚EN/CEON/OFF功能With Enable Pin| 有 Yes 最大耗散功率PdPower dissipation| Description & Applications| •Very low dropout voltage/quiescent current 5 V voltage regulator • Fixed 5 V, 100 mA regulator • Supply voltage range up to +33 V 45 V • Very low quiescent current typically 15 µA • Very low dropout voltage • High ripple rejection • Very high stability – Electrolytic capacitors: ESR Equivalent Series resistance < 38 Ω at IREG ≤ 25 mA 描述与应用| •非常低的压差电压/静态电流5 V稳压器 •固定5伏，100毫安稳压器 •电源电压范围为+33 V（45 V） •非常低的静态电流（典型值15μA） •非常低的压差电压 •高纹波抑制 •非常高的稳定性 - 电解电容器的ESR（等效串联 IREG<38Ω电阻）≤25毫安
