LB1867M-TLM-E

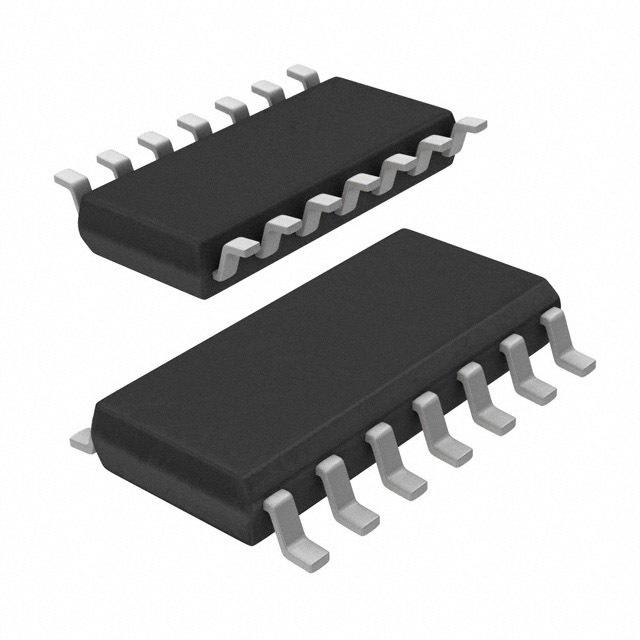

Fan Motor Driver 6.7V 14Pin MFP-S T/R

The LB1867M is a 2-phase unipolar brushless motor driver. With only a few peripheral parts, lockup protection and automatic recovery can be implemented. The IC can be configured for 12V or 24V operation and a wide range of variations, from Low speed to H-High speed and from 60cm to 120cm square using the same PCB. This makes it easy to design highly reliable fan motor installations.

Features

---

 |

.

Output protection Zener diode with variable withstand voltage

Z1, Z2 pins open: VOLM = 57V 24V specification

Z1, Z2 pins shorted: VOLM = 32V 12V specification

External Zener diode connected across Z1-VCC pins: support for fans with large drive current

.

External resistor allows configuration for 12V or 24V

.

Direct Hall element connection possible built-in Hall amplifier with hysteresis supports core without auxiliary electrode

.

Built-in output transistor with 1.0A output current strengthened negative-current support for core without auxiliary electrode

.

Built-in rotation detection function: Low during rotation and High during stop

.

Built-in lockup protection with automatic recovery

.

Built-in thermal shutdown
