RE526-LF

ROTH ELEKTRONIK  RE526-LF  电路板, Eurocard, FR4, 环氧玻璃复合, 1.5mm, 100mm x 160mm

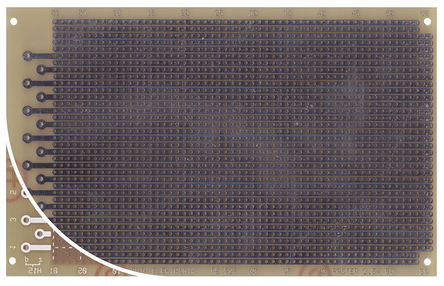

The is a Prototype PCB Eurocard with 2.54mm pitch spacing. It is made up of FR4 epoxy fibre glass composite and it has 36 continuous strips with 56 holes.

.

Single-sided 35µm Cu

.

Component print

.

Connector DIN 41612 type-H 15-channel hole spacing 5.08mm
