TSW-150-23-S-D

Conn Unshrouded Header HDR 100POS 2.54mm Solder ST Thru-Hole

Connector Header Through Hole 100 position 0.100" 2.54mm

欧时:
Classic PCB HDR Strips 0.100"

得捷:
CONN HEADER VERT 100POS 2.54MM

艾睿:

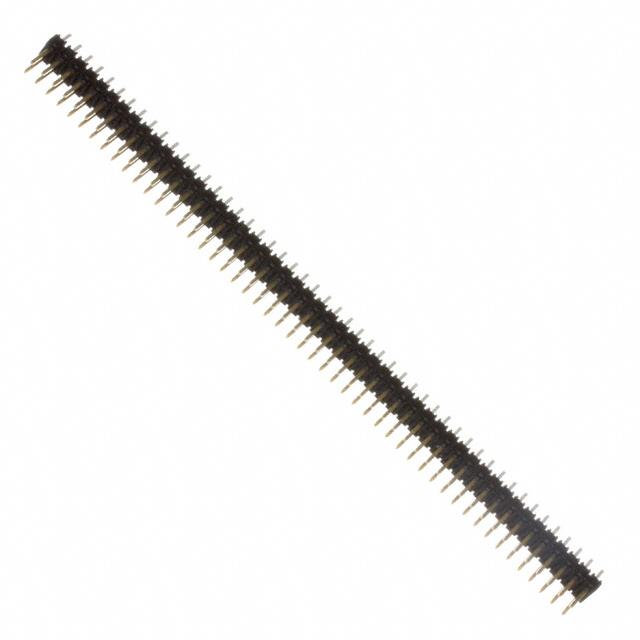

Easily mount this unshrouded TSW-150-23-S-D header connector from Samtec onto your PCB project to support a variety of physical configuration options. This HDR connector&s;s 100 contacts that are made out of phosphor bronze and plated with gold over nickel. Its pitch is 2.54 mm. This is a 2-row connector. It has a header type gender. It has a maximum voltage rating of 550 VAC. It has a straight body orientation. This device has a maximum current rating of 6.3 A/contact. This product comes packaged in bulk, so the parts will be stored loosely. It uses the solder termination method. This connector has an operating temperature of -55 to 125 °C. TSW-150-23-S-D is housed in black polyester. This product is 127 mm long, 8.38 mm tall and 5.08 mm deep.

Chip1Stop:
Conn Unshrouded Header HDR 100 POS 2.54mm Solder ST Thru-Hole Bulk

Newark:
# SAMTEC  TSW-150-23-S-D  .025 Sq. Terminal Strips

Electro Sonic:
Conn Unshrouded Header HDR 100 POS 2.54mm Solder ST Thru-Hole Bulk
