BGA715N7

GPS Amplifier

Description:

The is a front-end low noise amplifier for Global Navigation Satellite Systems GNSS from 1550 MHz to 1615 MHz like GPS, GLONASS, Beidou, Galileo and others. The LNA provides 20 dB gain, 0.7 dB noise figure and high linearity performance in the application configuration. Current consumption is as low as 3.3 mA. The BGA715N7 is based upon Technologies‘ B7HFM Silicon Germanium technology. It operates over a 1.5 V to 3.3 V supply range.

Summary of Features:

.

High gain: 20 dB

.

Low Noise Figure: 0.7 dB

.

Low current consumption: 3.3 mA

.

Supply voltage: 1.5 V to 3.3 V

.

High input compression point -15.5 dBm at 1.8 V supply

.

High input 3rd intercept point -7 dBm at 1.8 V supply

.

B7HFM Silicon Germanium technology

.

RF output internally matched to 50 Ω

.

Low external part count

.

2kV HBM ESD protection including AI-pin

.

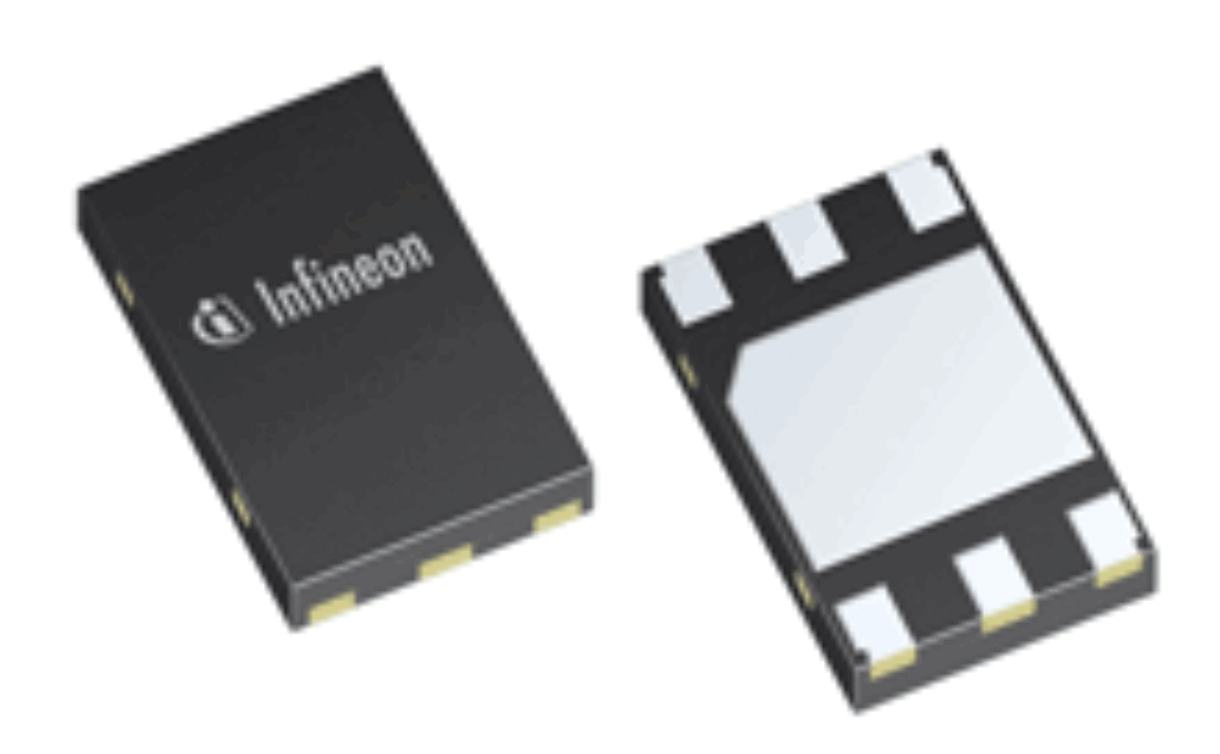

TSNP-7-1/TSNP-7-2 leadless packages

.

Moisture sensitivity level: MSL 1

.

Pb-free RoHS compliant package
