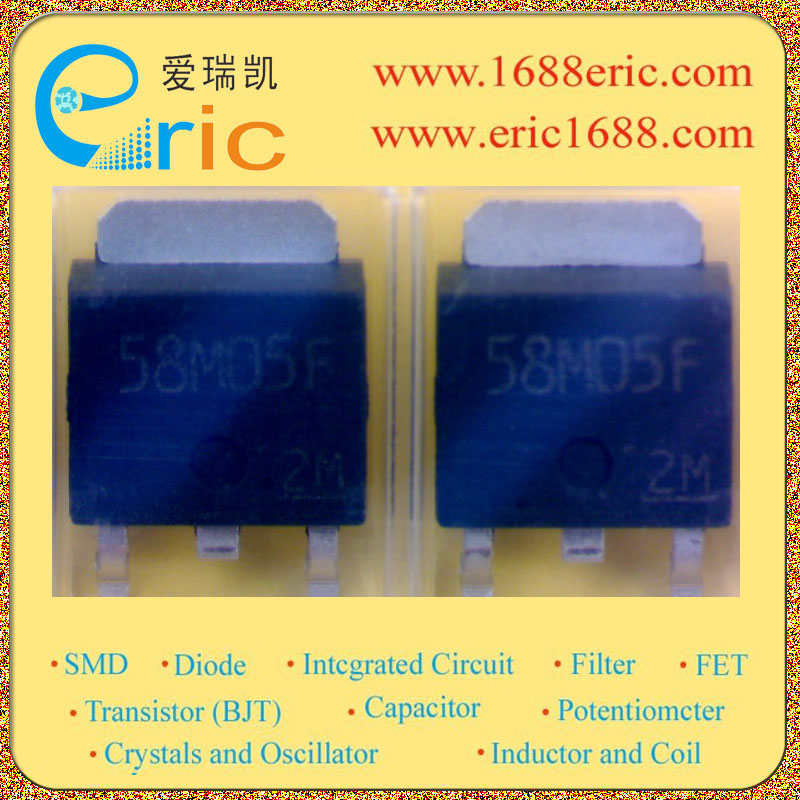

TA58M05F

500 mA低压降稳压器 •最大输出电流：500毫安•..

电路数量Number of Regulators| 1 \---|--- 输入电压VINVoltage - Input| 29V 输出电压VOUTVoltage - Output| 5V 输出电流IoCurrent - Output| 500mA/0.5A 最大压降VDOVoltage - Dropout| 0.65 V Max @IOUT = 500 mA 带使能脚EN/CEON/OFF功能With Enable Pin| 无 No 最大耗散功率PdPower dissipation| 1W Description & Applications| TOSHIBA Bipolar Linear Integrated Circuit Silicon Monolithic.

.

500 mA Low Dropout Voltage Regulator.* The TA58M**F Series consists of fixed-positive-output, low-dropout regulators with an output current of 500 mA max that utilize PNP transistors for the output stage. Low dropout voltage and standby current make the TA58M**F Series suitable for applications requiring low power consumption. * Maximum output current : 500 mA .* Output voltage : 5 / 6 / 8 / 9 / 10 /12/15 V . * Output voltage accuracy :VOUT 3% @Tj =25°C .* Low-dropout voltage : 0.65 V Max @IOUT =500 mA .* Protection function : Overcurrent protection / overheating protection / Reverse connection of power supply / 60 V load dump . 描述与应用| 双极型线性集成电路硅单片。*500 mA低压降稳压器。* TA58M** F系列包括固定正输出，低压差稳压器的输出电流为500 mA（最大），利用PNP晶体管输出级。低压差电压和待机电流，使TA58M** F系列适合要求低功耗的应用。*最大输出电流：500毫安。*输出电压：5/6/8/9/10/12/15 V。*输出电压精度：VOUT±3％（@ TJ= 25°C）。*低压差电压：0.65 V（最大）（@ IOUT= 500毫安）。*保护功能：过电流保护/过热保护/电源/60 V负载突降的反向连接。
