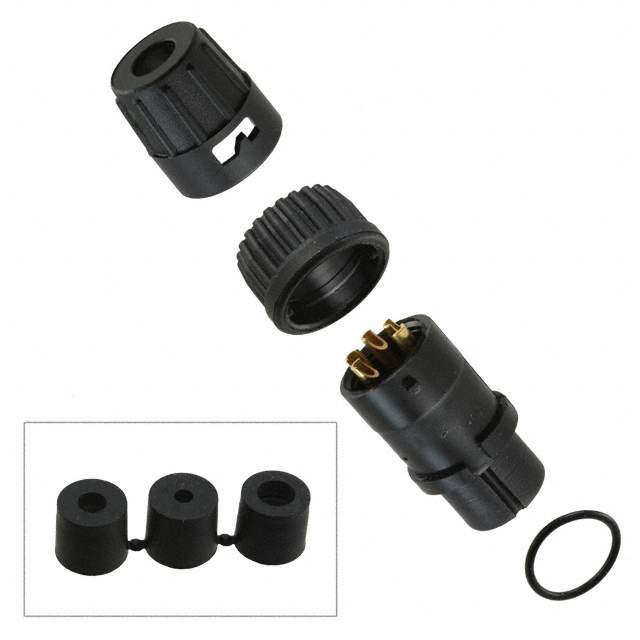

6282-5SG-3DC

圆形连接器, Mini-Con-X系列, 电缆安装插座, 5 触点, 焊接插座, 尼龙聚酰胺主体

Solder Cup, 600 V, -55 to +125 °C, Field Installable Connectors

Contact arrangements shown are wiring view of cable end pins/sockets. Key/Keyway shown for orientation only.

.

Available in Connector Types: Cable-End Socket, Panel-Mount Pin and Cable-to-Cable Pin-Styles Only.

* Provide Quality Solutions Requiring Interconnection in Harsh Environments

* 2-31 Contacts Available

* Applications Include, But Not Limited to, Marine, GPS Systems, Transportation, Etc.

* Ratings: 3.0 to 7.5 A, 600 V

* Contact Plating: Gold Over Nickel

* Mechanical Specifications: Minimum of 300 Mate/Unmate Cycles, Overriding Locking Feature on Coupling Ring to Prevent Vibration or Loosening, and an All Series Hex Nut to Withstand 1-12 inch/lb. Tightening Torque

* Environmental Specifications: Temperature: -55°C to +125°C -67°F to +257°F, Corrosion: 300 Hour Salt Spray Contacts

* Daisy Chain Grommet with 3 I.D.s: 0.125", 0.188" and 0.250"
