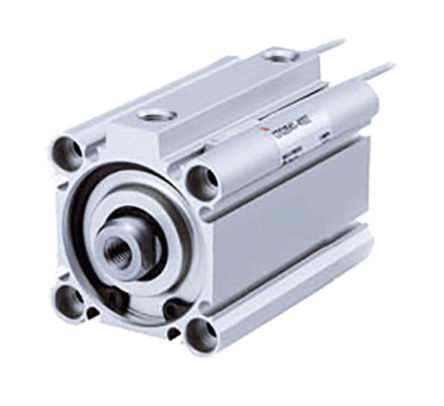

CDQ2B50TF-15DZ

SMC CDQ-Z 紧凑型气缸SMC 具有经过改进，成为一流的 CQ2 系列紧凑型气缸。此常见系列紧凑型执行器的 CQ2-Z 系列具有完全重新设计的主体，该主体比原始主体轻 5-13%，并增加自动开关安装选项。用于双色固态开关的集成自动开关通道设计降低了安装和维护期间的损坏风险。提供内径尺寸 32 至 63mm 和 5、10、15 与 75mm 冲程选项。### SMC CDQ 系列

Compact single and double acting cylinders, considerably shorter than corresponding tie rod designs.

* Space and weight saving

* Magnetic piston

* Proof pressure 15bar

* Operating pressure range 0.05MPa 0.51kgf/cm2 min to 10bar max

* Supplied with tapered and parallel ports

* Temperature range no freezing allowed -10°C to +70°C without auto switch, -10°C to +60°C with auto switch

* Internal female threaded rod ends

* Nitrile seals

* Lubrication not required

CDQ2B50TF-15DZ详细参数
